Power Transfer Unit Draining and Filling
WARNING: This page is about a different variant/trim than selected.
Materials
| Name |
Specification |
Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL |
WSL-M2C192-A |
Draining
- With the vehicle in NEUTRAL, position it on hoist. Refer to: Jacking and Lifting - Overview
.
- If equipped. Remove the retainers and the underbody shield.
 Courtesy of FORD MOTOR COMPANY
|

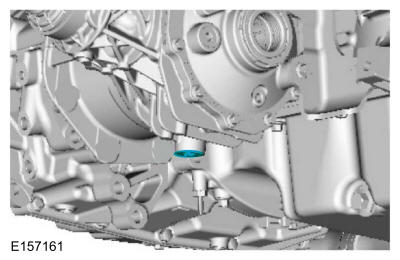

- Remove the PTU drain plug.
 Courtesy of FORD MOTOR COMPANY
|
- Install the PTU drain plug.
Torque: 33 lb.ft (45 Nm)
Courtesy of FORD MOTOR COMPANY
|
Filling

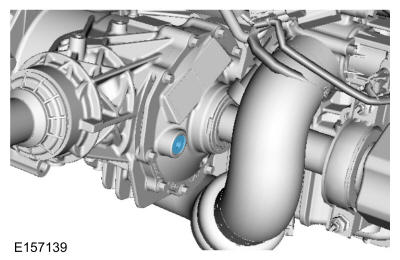

- Remove the PTU fill plug.
 Courtesy of FORD MOTOR COMPANY
|
- Fill the PTU with clean fluid, level with the fill plug opening.
Material: Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)
 Courtesy of FORD MOTOR COMPANY
|
- Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)
Courtesy of FORD MOTOR COMPANY
|
- If equipped. Install the underbody shield.
Courtesy of FORD MOTOR COMPANY
|
