Ignition Coil-On-Plug: Removal
WARNING: This page is about a different variant/trim than selected.
Both sides
- Remove the engine appearance cover retainers and then remove the engine appearance cover.
Left side

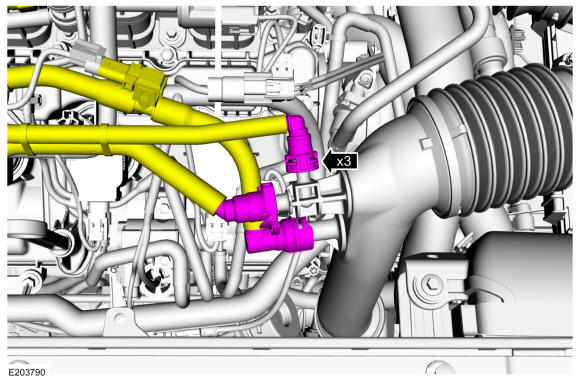

- Disconnect the quick release couplings. Refer to: Quick Release Coupling
.

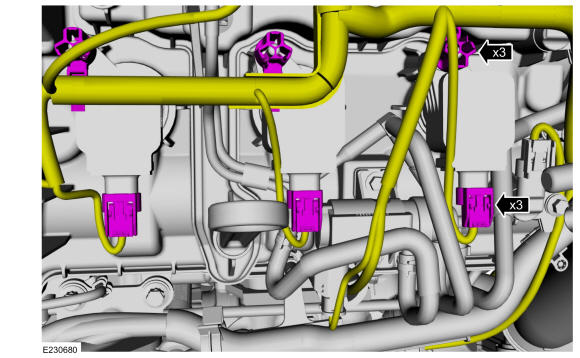

- Release the electrical harness retainers from the ignition coil-on-plug studbolts, then disconnect the ignition coil-on-plug electrical connectors.
-
NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

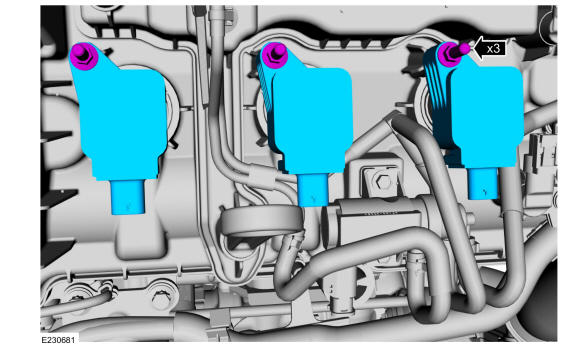

Remove the ignition coil-on-plug retaining studbolts, then remove the ignition coil-on-plugs.
Right side

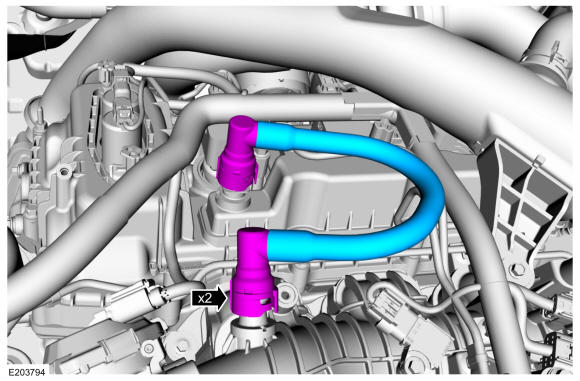

- Disconnect the quick release couplings and then remove the crankcase ventilation hose. Refer to: Quick Release Coupling
.
- Remove the air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH .

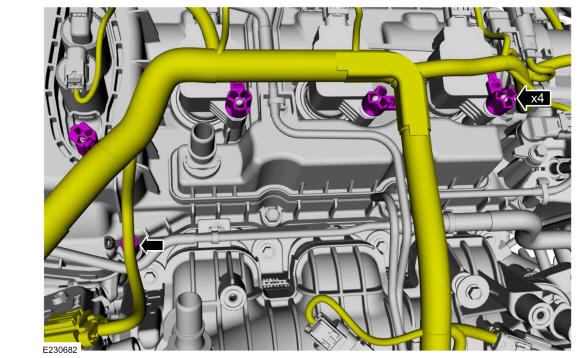

- Detach the wire harness retainers from the studbolts.

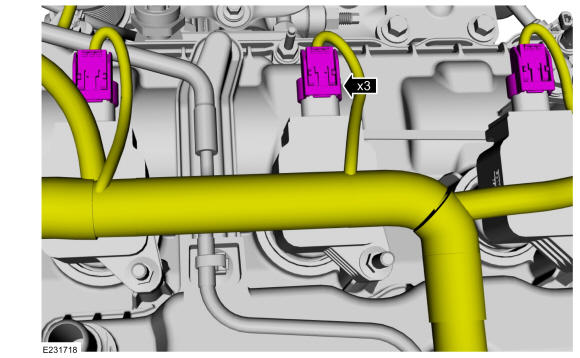

- Disconnect the ignition coil-on-plug electrical connectors.
-
NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

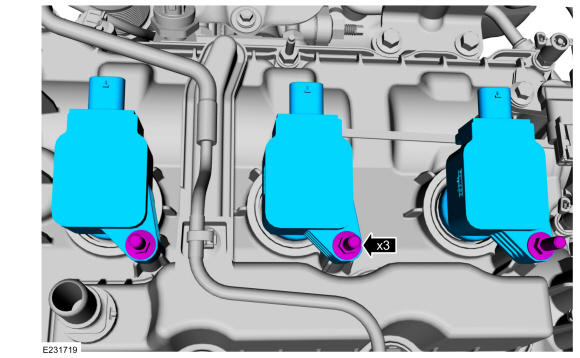

Remove the ignition coil-on-plug retaining studbolts, then remove the ignition coil-on-plugs.
