Turbocharger - Component Location
WARNING: This page is about a different variant/trim than selected.

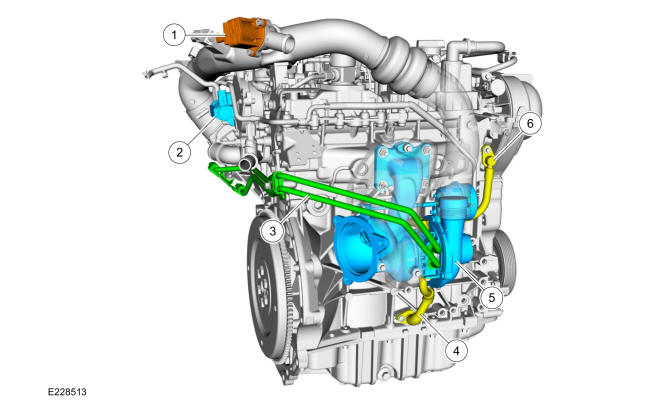

1.5L EcoBoost Turbocharger Components
| Item | Description |
|---|---|
| 1 | Turbocharger bypass valve |
| 2 | Wastegate control valve solenoid |
| 3 | Turbocharger coolant tubes |
| 4 | Turbocharger oil return tube |
| 5 | Turbocharger |
| 6 | Turbocharger oil supply tube |
1.5L EcoBoost Turbocharger Control
| Item | Description |
|---|---|
| 1 | Wastegate actuator |
| 2 | Turbocharger |
| 3 | Vacuum pump |
| 4 | Wastegate control valve solenoid |
| 5 | Turbocharger bypass valve |
