Power Transfer Unit Vent: Installation

WARNING: This page is about a different variant/trim than selected.

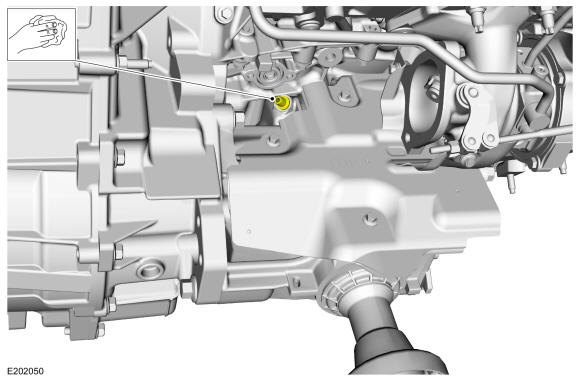

  1. Clean the PTU vent fitting.
    GFD195457Courtesy of FORD MOTOR COMPANY

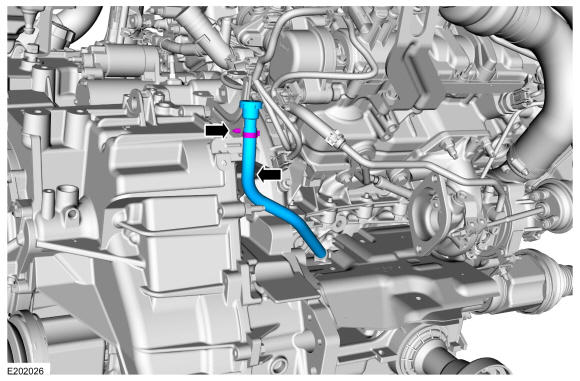

  2. Connect the PTU vent hose.
    GFD195456Courtesy of FORD MOTOR COMPANY
  3. Install the RH catalytic converter. Refer to: Catalytic Converter RH .
