Intermediate Shaft Bushing: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the intermediate shaft seal. Refer to: Intermediate Shaft Seal .

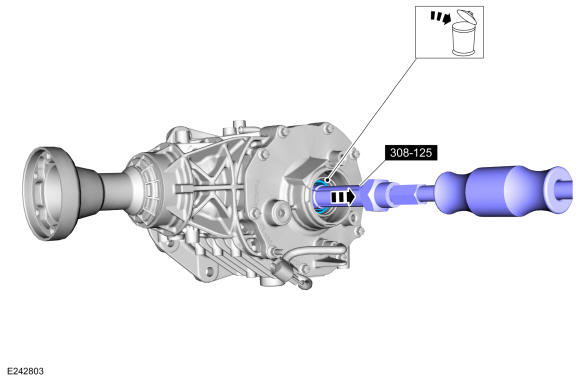

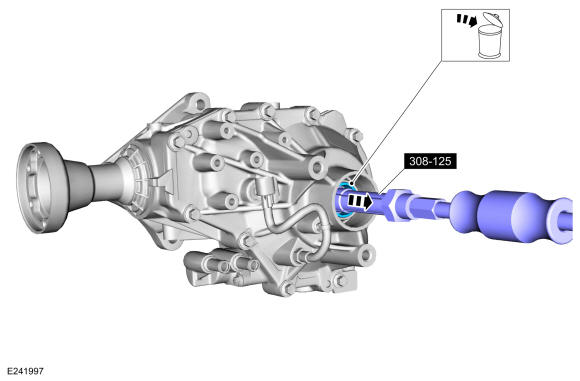

- Using the special tool and a slide hammer, remove and discard the intermediate shaft bushing.
Use Special Service Tool: 308-125 Remover, Transfer Case Bearing.
Use the General Equipment: Slide Hammer
