Turbine Shaft Speed (TSS) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the main control cover. Refer to: Main Control Cover .
  2. Disconnect the TSS sensor.
    GFD194889Courtesy of FORD MOTOR COMPANY

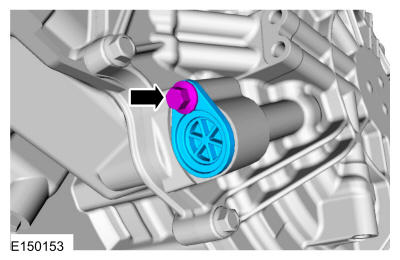

  3. Remove the bolt and the TSS sensor.
    GFD194890Courtesy of FORD MOTOR COMPANY
