Solenoid Body: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure not to pinch the TSS, OSS or TR sensor wiring harnesses behind the solenoid body when positioning the solenoid body in place.

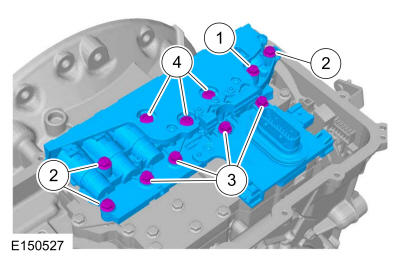

Install the solenoid body bolts hand-tight.
1. Bolt
  Distance: 1.65in (42mm)
2. Bolt
  Distance: 2.48in (63mm)
3. Bolt
  Distance: 3.15in (80mm)
4. Bolt
  Distance: 3.74in (95mm)
Courtesy of FORD MOTOR COMPANY

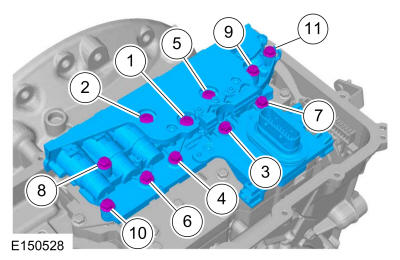

Tighten the solenoid body bolts in the sequence displayed below.
Torque: 106 lb.in (12 Nm)

Fig 1: Solenoid Body Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Route the OSS sensor wiring harness into the retainer.

Courtesy of FORD MOTOR COMPANY

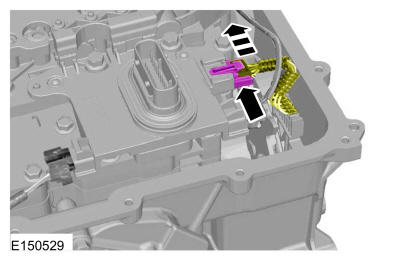

Connect the TSS and OSS sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Connect the TR sensor electrical connector and slide the lock tab to the LOCK position.

Courtesy of FORD MOTOR COMPANY
Install the main control cover. Refer to: Main Control Cover .

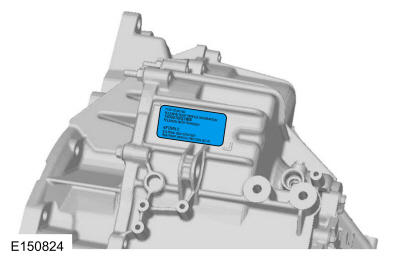

Wipe the surface of the existing solenoid body strategy tag on top of the transmission case clean and install the new solenoid body strategy tag (supplied with the solenoid body service kit) over it.

Courtesy of FORD MOTOR COMPANY
NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed.

Download a new transmission strategy to the PCM. Refer to: Transmission Strategy Download .
