Selector Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Apply petroleum jelly.

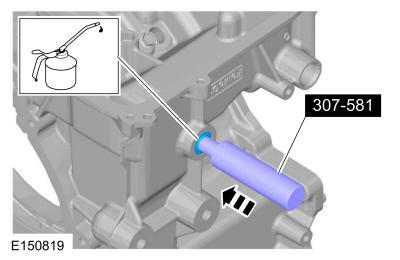

Using the special tool, install the selector shaft seal. Use Special Service Tool: 307-581 Manual lever seal installer.

Courtesy of FORD MOTOR COMPANY
Install the TR sensor. Refer to: Transmission Range (TR) Sensor .
