Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the main control valve body. Refer to: Main Control Valve Body .

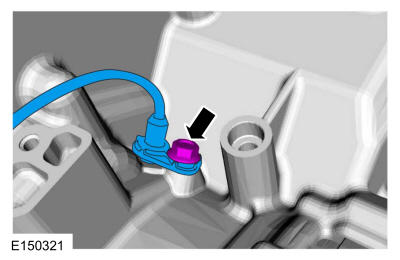

  2. Remove the bolt and the OSS sensor.

    Torque: 106 lb.in (12 Nm)

    GFD194819Courtesy of FORD MOTOR COMPANY
