Main Control Valve Body: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the main control cover. Refer to: Main Control Cover .
  2. Slide the TR sensor electrical connector lock tab over.
    GFD194809Courtesy of FORD MOTOR COMPANY

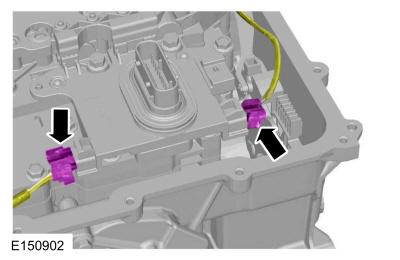

  3. Disconnect the TSS and OSS sensor electrical connectors.
    GFD194810Courtesy of FORD MOTOR COMPANY
  4. Remove the OSS sensor wire from the retainer.
    GFD194811Courtesy of FORD MOTOR COMPANY
  5. NOTE: Handle the solenoid body with care or damage to the solenoid body may occur.
    NOTE: Note the location of the different length bolts for assembly.

    Remove the bolts and the solenoid body.

    GFD194812Courtesy of FORD MOTOR COMPANY

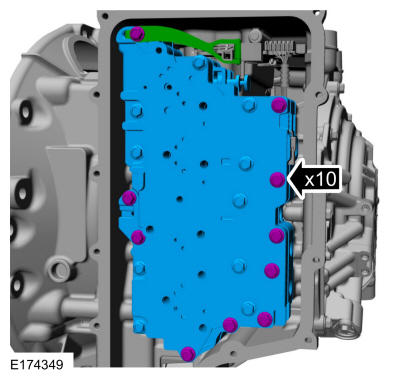

  6. Remove the 10 main control valve body bolts and the valve body.
    GFD194813Courtesy of FORD MOTOR COMPANY
