Main Control Valve Body: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Be careful not to pinch the TSS, OSS or TR sensor wiring harnesses under the valve body, or damage to the wiring harness or connectors may occur.

NOTE: Make sure that the manual pin (part of the TR sensor) is correctly installed in the manual valve.

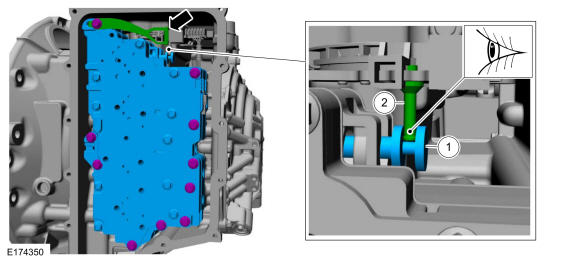

Position the TSS, OSS and TR sensor wiring harnesses aside, align the manual pin in the manual valve, install the main control valve body and loosely install the bolts.
1. Manual valve
2. Manual pin
Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the bolts in the sequence displayed below.

Install the main control valve body bolts. Tighten the bolts in the sequence displayed below.

Torque: 106 lb.in (12 Nm)

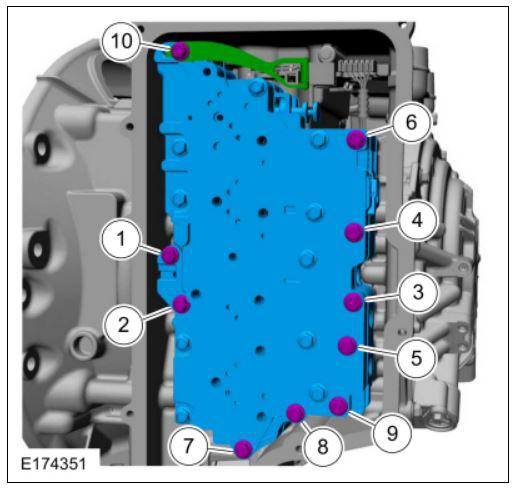

Fig 1: Main Control Valve Body Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure not to pinch the TSS, OSS or TR sensor wiring harnesses behind the solenoid body when positioning the solenoid body in place.

Install the solenoid body bolts hand-tight.
1. Bolt
  Distance: 1.65in (42mm)
2. Bolt
  Distance: 2.48in (63mm)
3. Bolt
  Distance: 3.15in (80mm)
4. Bolt
  Distance: 3.74in (95mm)
Courtesy of FORD MOTOR COMPANY
Tighten the solenoid body bolts in the sequence displayed below.
Torque: 106 lb.in (12 Nm)

Fig 2: Solenoid Body Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Route the OSS sensor wiring harness into the retainer.

Courtesy of FORD MOTOR COMPANY
Connect the TSS and OSS sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Connect the TR sensor electrical connector and slide the lock tab to the LOCK position.

Courtesy of FORD MOTOR COMPANY
Install the main control cover. Refer to: Main Control Cover .
If a replacement transmission assembly is being installed or a new solenoid body is installed, the PCM must be reflashed with a new solenoid body strategy and identification data file. Refer to: Transmission Strategy Download .
