Main Control Cover: Installation

WARNING: This page is about a different variant/trim than selected.

Inspect the transmission main control cover seal for damage and install new if necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the studbolts in the correct locations as noted during disassembly.

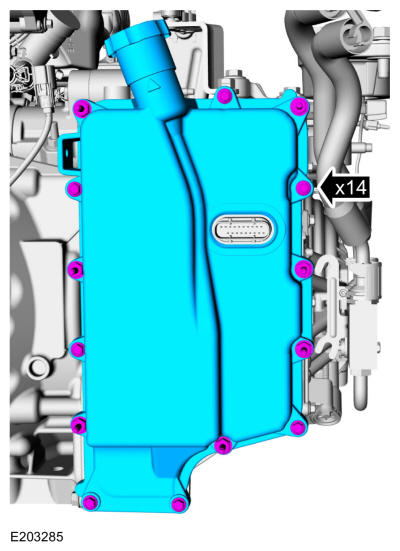

Install the front cover and loosely install the bolts.

Courtesy of FORD MOTOR COMPANY

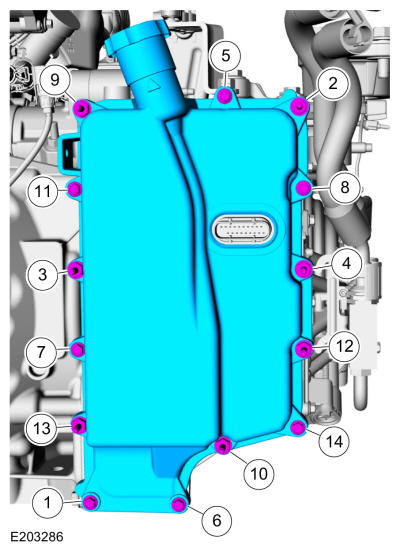

Tighten the main control cover bolts in the sequence displayed below.
Torque: 106 lb.in (12 Nm)

Fig 1: Main Control Cover Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

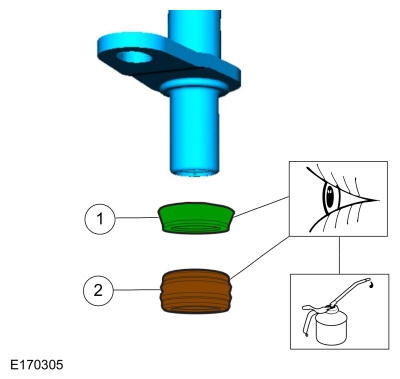

NOTE: If removed, inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary.
1. Install the backing ring (7J324)
2. Lubricate and install the seal (7D258)
  Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)
Courtesy of FORD MOTOR COMPANY

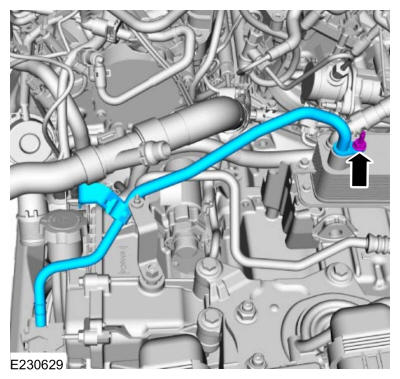

Install the transmission fluid warmer to transmission fluid cooler tube and new bolt.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

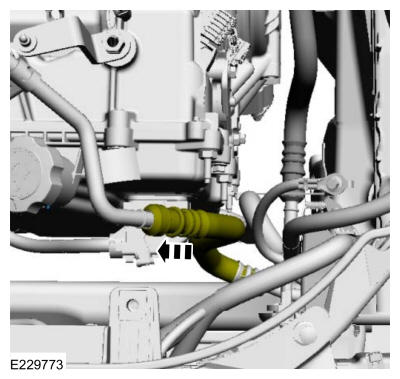

Connect the transmission fluid cooler tube.

Courtesy of FORD MOTOR COMPANY

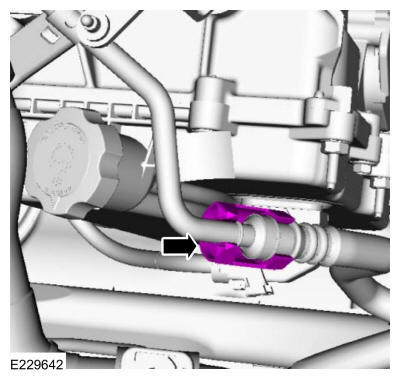

Install the transmission fluid cooler tube secondary latches.

Courtesy of FORD MOTOR COMPANY

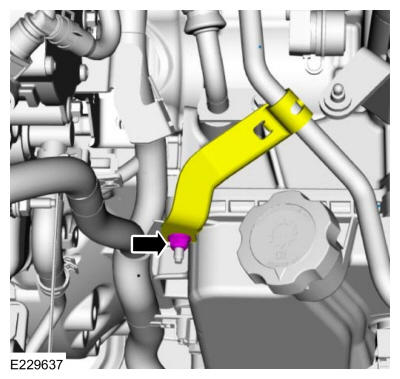

Install the transmission cooler tube bracket nut.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

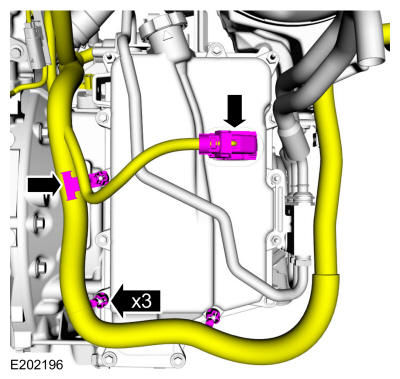

Connect the transmission electrical connector and the wiring retainers.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Charge Air Cooler (CAC) Intake Pipe .
2. Refer to: Air Cleaner Outlet Pipe RH .
3. Refer to: Air Cleaner Outlet Pipe RH .
4. Refer to: Air Cleaner .
Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
