Transmission Case Reseal

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-001 (T50T-100-A) Slide Hammer
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	303-D020 (D80L-100-R) Collet, 7/8 to 1
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1997-F/FLM/LT, TKIT-1998-LM (Navigator)
Courtesy of FORD MOTOR COMPANY	307-575 Converter Seal Installer TKIT-2006UF-FLM, TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	307-580 Holding Fixture TKIT-2006UF-FLM, TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	307-582 A Cover Axle Seal Installer TKIT-2008AS-FLM
Courtesy of FORD MOTOR COMPANY	307-585 Support seal installer TKIT-2006UF-FLM, TKIT-2006UF-ROW
Puller
Wooden Block

Materials

Repair

1. Remove the transmission. Refer to: Transmission .
2. For information on component views and base part numbers. Refer to: Transmission Description .

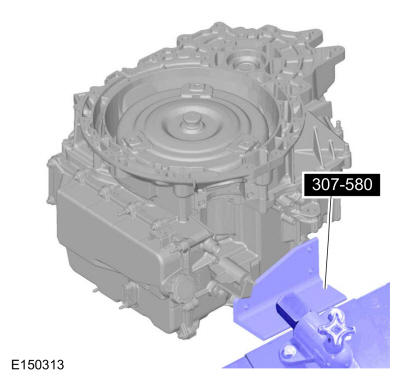

3. Using the special tool, install the transmission onto the bench. Use Special Service Tool: 307-580 Holding Fixture.

   Courtesy of FORD MOTOR COMPANY

4. Remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.
   NOTE: Only thread the bolts 6 to 8 turns or do not exceed 12 mm (0.472 in) into the torque converter. If the bolts are threaded too far, damage to the torque converter clutch surface can occur causing torque converter failure.

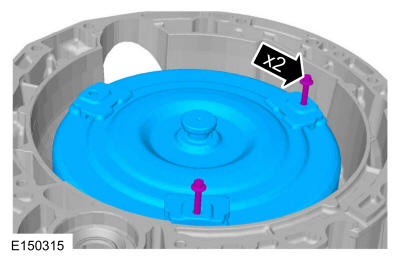

   Install two 10 mm x 1.50 bolts into the torque converter 6 to 8 turns to assist in handling the torque converter and remove the torque converter.

   Courtesy of FORD MOTOR COMPANY

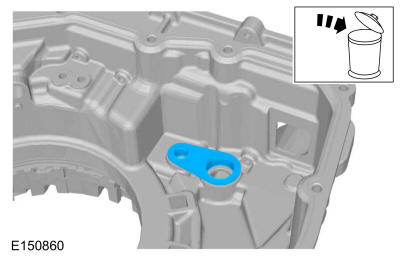

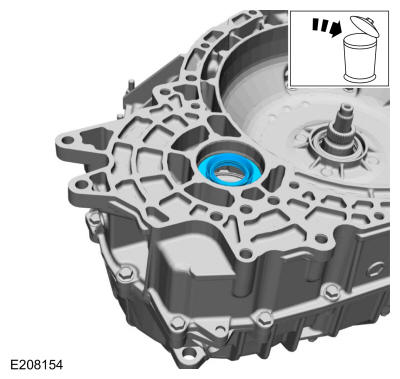

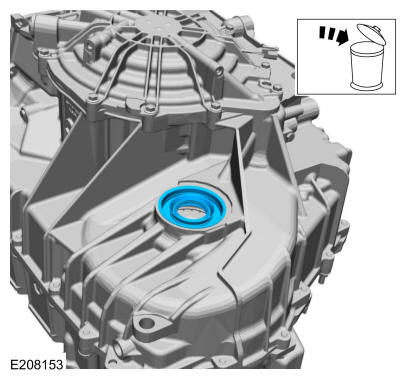

6. Remove and discard the halfshaft seal from the transmission case.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: FWD vehicles

   Remove and discard the halfshaft seal from the torque converter housing.

   Courtesy of FORD MOTOR COMPANY

8. Remove and discard the torque converter hub seal from the torque converter housing. Use the General Equipment: Puller

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Note the location of the studbolts for assembly.

   Remove the studbolts, bolts and the main control cover.

   Courtesy of FORD MOTOR COMPANY

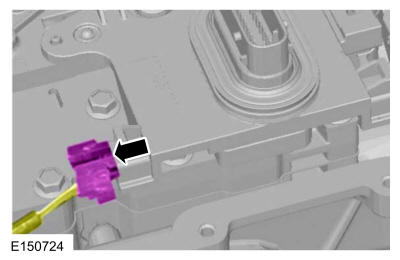

10. Disconnect the TSS sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

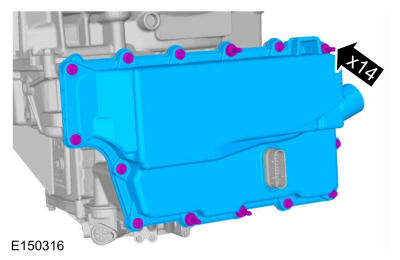

11. Remove the cover assembly bolts.

    Courtesy of FORD MOTOR COMPANY

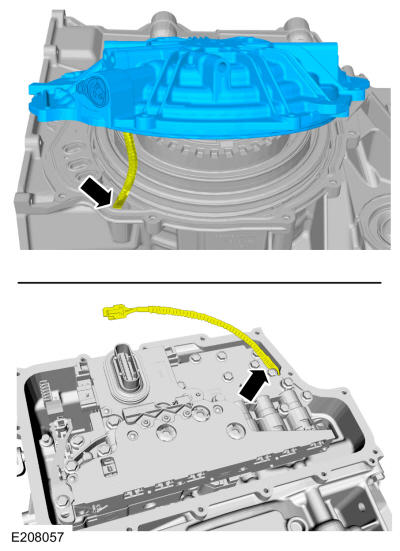

12. Remove the cover assembly and carefully route the TSS sensor wiring harness and electrical connector out of the transmission case.

    Courtesy of FORD MOTOR COMPANY

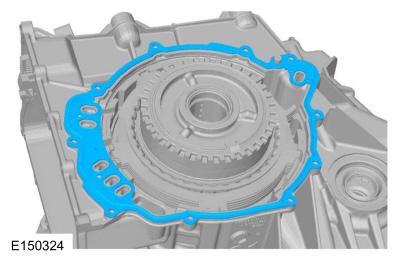

13. Remove the cover assembly gasket.

    Courtesy of FORD MOTOR COMPANY

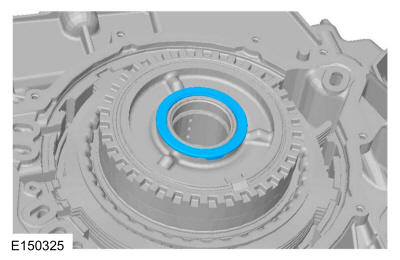

14. Remove the No. 1 cover assembly thrust bearing.

    Courtesy of FORD MOTOR COMPANY

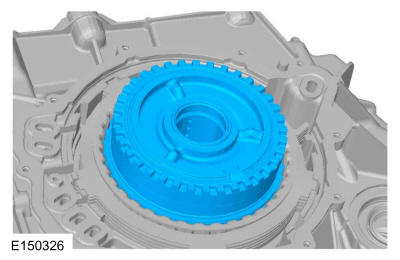

15. Remove the overdrive/direct clutch hub and turbine shaft assembly.

    Courtesy of FORD MOTOR COMPANY

16. Remove No. 3 rear sun gear thrust bearing.

    Courtesy of FORD MOTOR COMPANY

17. Remove the intermediate clutch shell and sun gear assembly.

    Courtesy of FORD MOTOR COMPANY

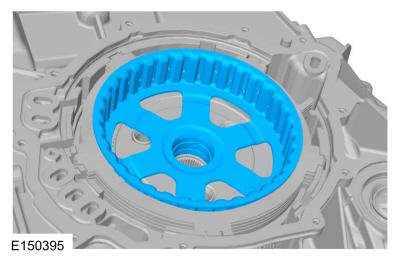

18. Remove the intermediate clutch assembly.

    Courtesy of FORD MOTOR COMPANY

19. NOTE: The location of the tab on the bottom pressure plate is aligned with the gap for the low One-Way Clutch (OWC) snap ring.

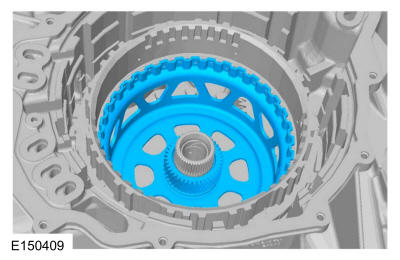

    Remove the low/reverse clutch assembly.

    Courtesy of FORD MOTOR COMPANY

20. Remove the rear planetary carrier and center ring gear assembly.

    Courtesy of FORD MOTOR COMPANY

21. Remove the No. 6 center sun gear and the No. 5 center/rear planetary thrust bearings.

    Courtesy of FORD MOTOR COMPANY

22. Remove the center planetary sun gear.

    Courtesy of FORD MOTOR COMPANY

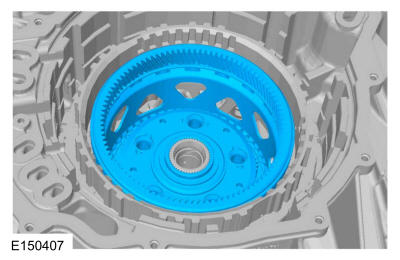

23. Remove the center planetary carrier and front ring gear assembly.

    Courtesy of FORD MOTOR COMPANY

24. Remove the No. 7 center sun gear and the No. 8 front/center planetary gear assembly thrust bearings.

    Courtesy of FORD MOTOR COMPANY

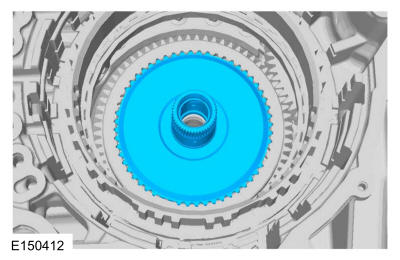

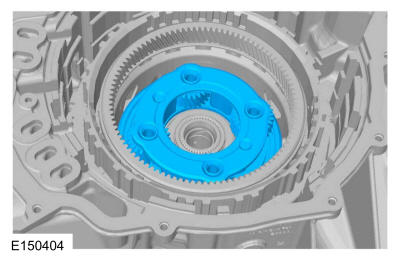

25. Remove the front planetary carrier and rear ring gear assembly.

    Courtesy of FORD MOTOR COMPANY

26. Remove the front planetary sun gear and shell assembly.

    Courtesy of FORD MOTOR COMPANY

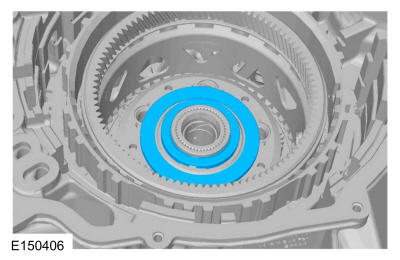

27. Remove the No. 10 front sun gear thrust bearing.

    Courtesy of FORD MOTOR COMPANY

28. Remove the front planetary carrier hub assembly.

    Courtesy of FORD MOTOR COMPANY

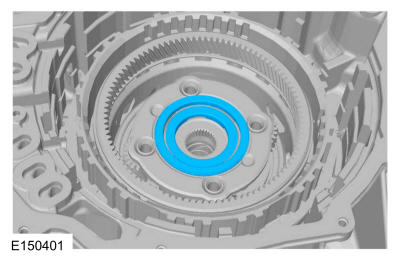

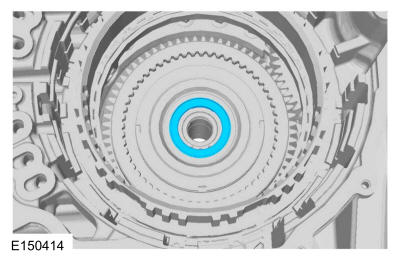

29. Remove the No. 11 support assembly thrust bearing.

    Courtesy of FORD MOTOR COMPANY

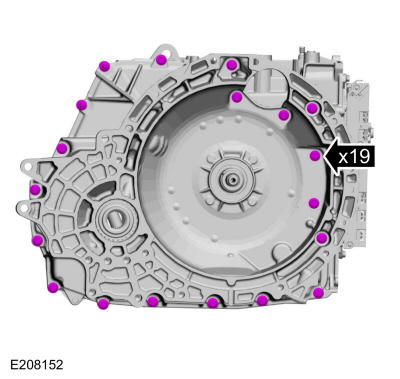

30. Remove the 19 torque converter housing bolts.

    Courtesy of FORD MOTOR COMPANY

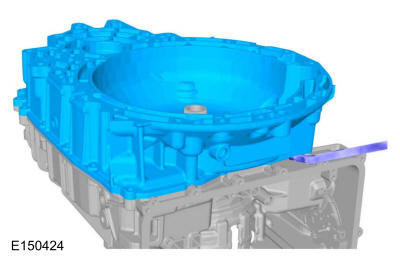

31. NOTE: Carefully pry on the transmission torque converter housing and the case to separate the torque converter housing from the case. Do not pry up on the silicone sealant mating surfaces, damage to the mating surfaces may occur. Carefully lift the torque converter housing off the dowel pins.

    Carefully pry the torque converter housing off the transmission case just enough to break the seal of the silicone and remove the torque converter housing from the transmission case.

    Courtesy of FORD MOTOR COMPANY

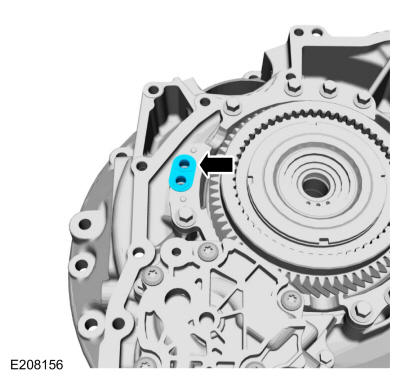

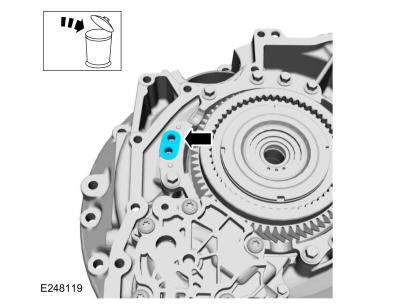

32. Remove and discard the pump-to-case seal.

    Courtesy of FORD MOTOR COMPANY

33. Remove and discard the stator support assembly seal.

    Courtesy of FORD MOTOR COMPANY

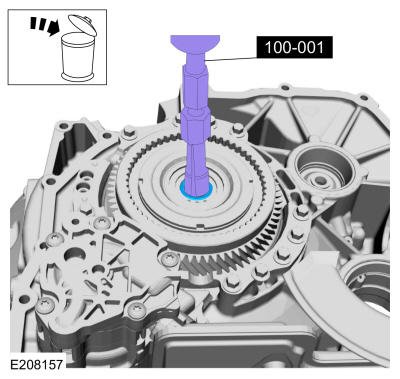

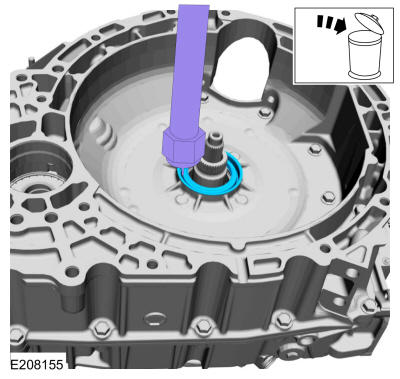

34. Remove and discard the input shaft seal. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 303-D020 (D80L-100-R) Collet, 7/8 to 1.

    Courtesy of FORD MOTOR COMPANY

35. Install a new input shaft seal on the special tool. Use Special Service Tool: 307-585 Support seal installer.

    Courtesy of FORD MOTOR COMPANY

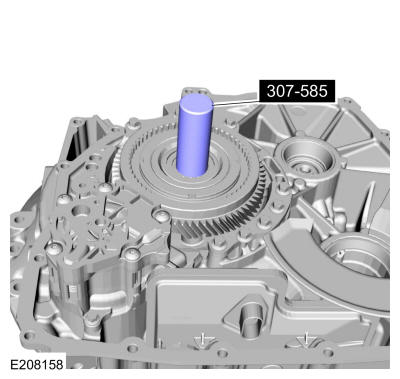

36. Using the special tool, install the input shaft seal. Use Special Service Tool: 307-585 Support seal installer.

    Courtesy of FORD MOTOR COMPANY

37. Install a new stator support assembly seal.

    Courtesy of FORD MOTOR COMPANY

38. Install a new pump-to-case seal.

    Courtesy of FORD MOTOR COMPANY

39. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Courtesy of FORD MOTOR COMPANY

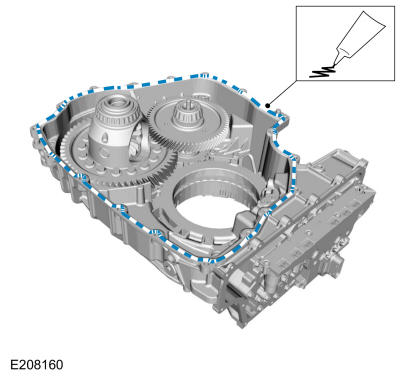

40. NOTE: Make sure the sealing surface of both the transmission case and the torque converter housing are clean, dry and free of oil or the silicone will not seal the transmission case.

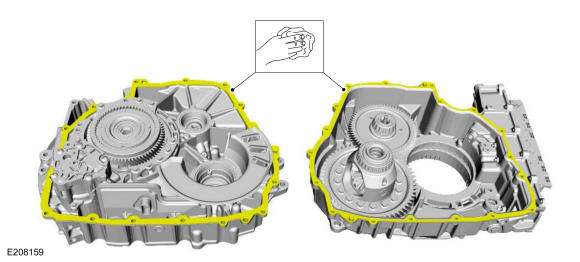

    Apply a bead of silicone sealant to the machined surface of the transmission case.

    Material: Motorcraft ® Ultra Silicone Sealant / TA-29

    Courtesy of FORD MOTOR COMPANY

41. NOTE: Install the 2 studbolts in the correct location as noted during disassembly.
    NOTE: Hand tighten the bolts only.

    Install the torque converter housing on top of the transmission case and install the bolts.

    Courtesy of FORD MOTOR COMPANY

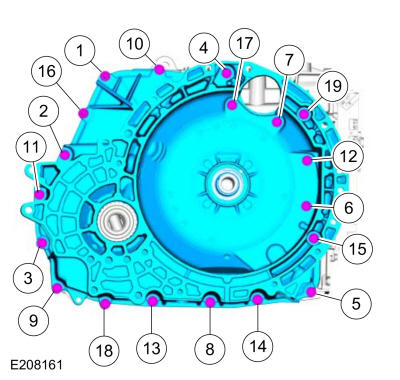

42. NOTE: The studbolts are 1 and 16 in the tightening sequence.

    Tighten the bolts in the sequence displayed.

    Torque: 18 lb.ft (24 Nm)

    Fig 1: Torque Converter Housing Tightening Sequence

    Courtesy of FORD MOTOR COMPANY

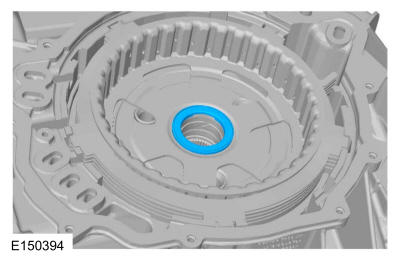

43. Install the No. 11 stator support thrust bearing.

    Courtesy of FORD MOTOR COMPANY

44. Install the front planetary carrier hub.

    Courtesy of FORD MOTOR COMPANY

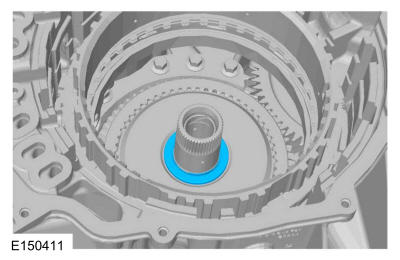

45. Install the No. 10 front sun gear thrust bearing.

    Courtesy of FORD MOTOR COMPANY

46. Install the front sun gear and shell assembly.

    Courtesy of FORD MOTOR COMPANY

47. Install the front carrier and rear ring gear assembly.

    Courtesy of FORD MOTOR COMPANY

48. Install the No. 8 front/center planetary gear assembly and the No. 7 center sun gear thrust bearings.

    Courtesy of FORD MOTOR COMPANY

49. Install the center planetary carrier and front ring gear assembly.

    Courtesy of FORD MOTOR COMPANY

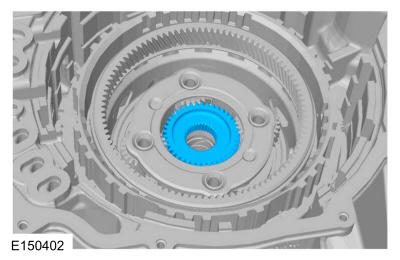

50. NOTE: The groove on the center sun gear is installed facing up.

    Install the center planetary sun gear.

    Courtesy of FORD MOTOR COMPANY

51. Install the No. 6 center sun gear and the No. 5 center/rear planetary thrust bearings.

    Courtesy of FORD MOTOR COMPANY

52. Install the rear planetary gear carrier assembly.

    Courtesy of FORD MOTOR COMPANY

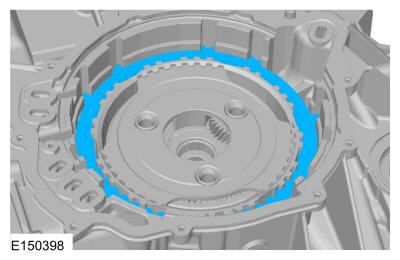

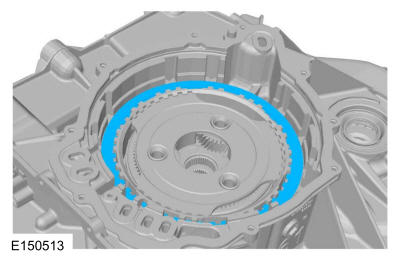

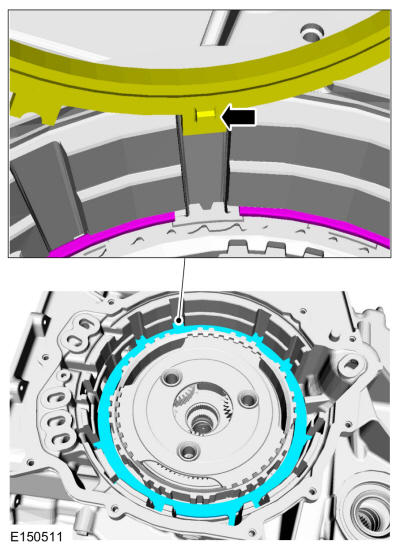

53. NOTE: Failure to align the tab on the bottom of the low/reverse pressure plate with the gap in the low One-Way Clutch (OWC) snap ring may result in damage to the transmission.

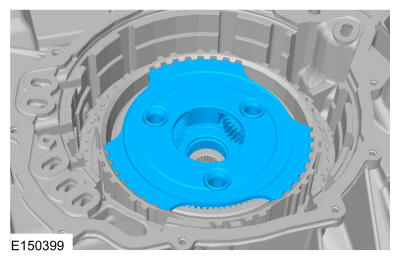

    Install the low/reverse clutch pressure plate.

    1. Make sure the tab on the bottom of the pressure plate fits in the gap of the low One-Way Clutch (OWC) snap ring.
    2. Install the low/reverse clutch pressure plate.

    Courtesy of FORD MOTOR COMPANY

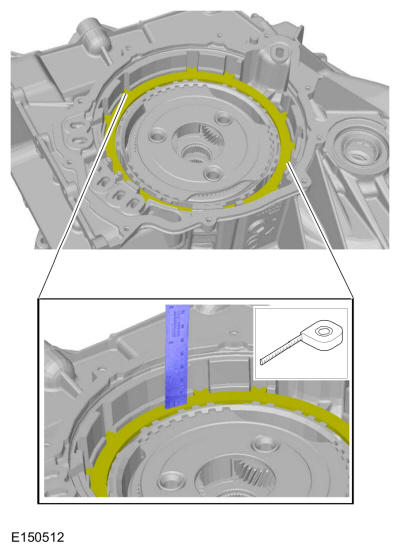

54. Measure the depth of the low/reverse clutch pressure plate where the tab fits into the gap of the low One-Way Clutch (OWC) snap ring and directly across from it. If the pressure plate is seated correctly, the depth should be the same. If the depths are different, rotate the snap ring so that the gap fits around the tab on the pressure plate.

    Courtesy of FORD MOTOR COMPANY

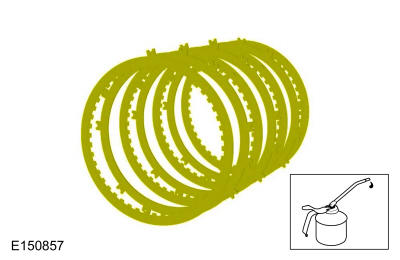

55. Soak the clutch plates.

    Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

    Courtesy of FORD MOTOR COMPANY

56. Install the low/reverse clutch.

    Courtesy of FORD MOTOR COMPANY

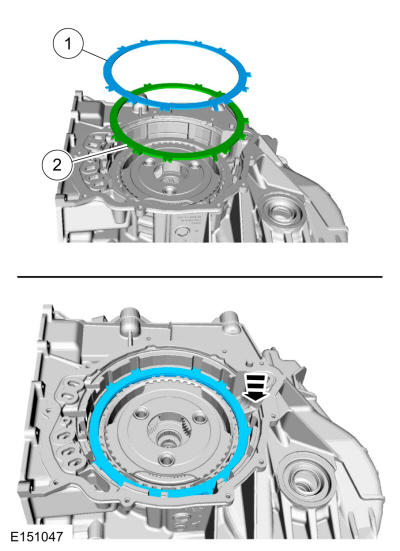

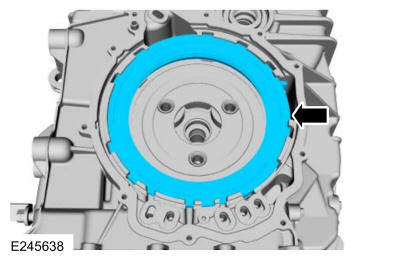

57. NOTE: When the low/reverse clutch is correctly installed, the wave spring is on top.

    Install the low/reverse clutch wave spring and pressure plate.

    1. Wave spring
    2. Pressure plate

    Courtesy of FORD MOTOR COMPANY

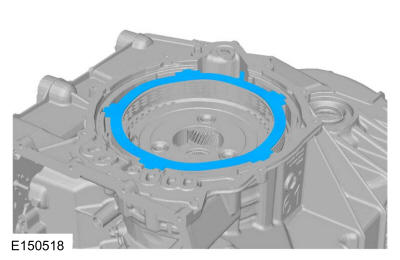

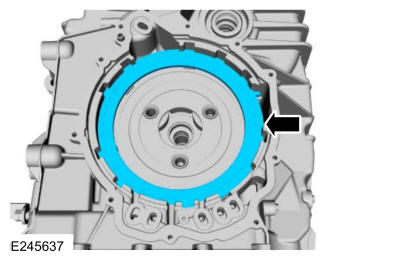

58. Install the intermediate clutch pressure plate.

    Courtesy of FORD MOTOR COMPANY

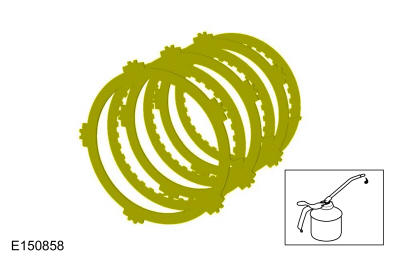

59. Soak the clutch plates.

    Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

    Courtesy of FORD MOTOR COMPANY

60. Install the intermediate clutch pack assembly.

    Courtesy of FORD MOTOR COMPANY

61. Install the intermediate clutch pack wave spring.

    Courtesy of FORD MOTOR COMPANY

62. Install the rear sun gear and shell assembly.

    Courtesy of FORD MOTOR COMPANY

63. Install the No. 3 rear sun gear thrust bearing.

    Courtesy of FORD MOTOR COMPANY

64. Install the overdrive/direct clutch hub and turbine shaft assembly.

    Courtesy of FORD MOTOR COMPANY

65. Install the No. 1 cover assembly thrust bearing.

    Courtesy of FORD MOTOR COMPANY

66. Install the cover assembly gasket.

    Courtesy of FORD MOTOR COMPANY

67. Route the TSS sensor harness through the transmission case to the valve body area and install the cover assembly.

    Courtesy of FORD MOTOR COMPANY

68. Install the cover assembly bolts and tighten the bolts in the sequence displayed below.

    Torque: 106 lb.in (12 Nm)

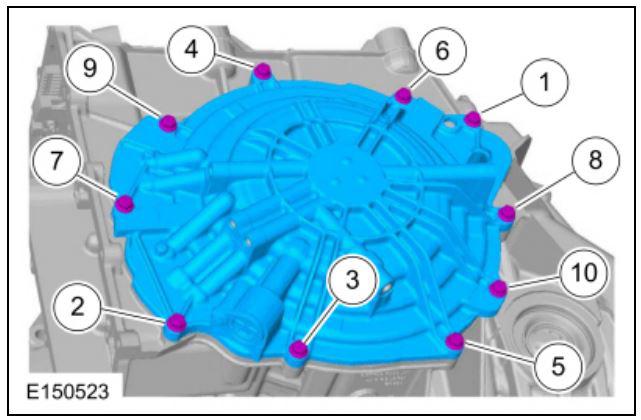

    Fig 2: Cover Assembly Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
69. Connect the TSS sensor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

70. Inspect the transmission main control cover seal for damage and install new if necessary.

    Courtesy of FORD MOTOR COMPANY

71. NOTE: Install the studbolts in the correct locations as noted during disassembly.

    Install the transmission main control cover and install the studbolts and the bolts.

    Courtesy of FORD MOTOR COMPANY

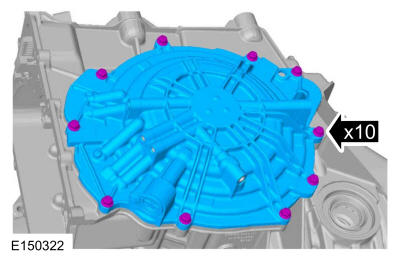

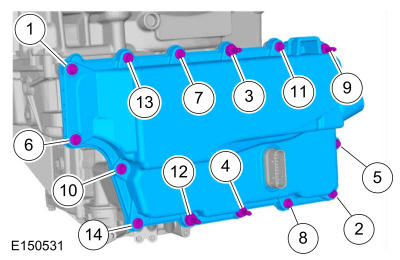

72. Tighten the main control cover studbolts and the bolts in the sequence displayed below.

    Torque: 106 lb.in (12 Nm)

    Fig 3: Main Control Cover Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
73. Install a new torque converter hub seal on the special tool. Use Special Service Tool: 307-575 Converter Seal Installer.

    Courtesy of FORD MOTOR COMPANY

74. NOTE: Support the torque converter housing using blocks of wood, or damage to the torque converter housing may occur.

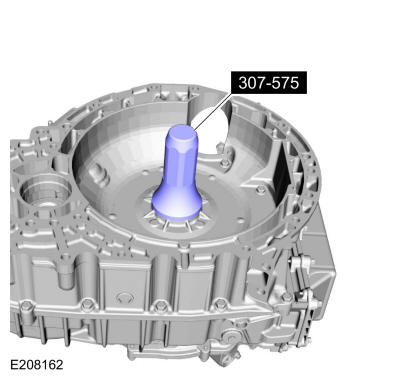

    Using the special tool, install the torque converter hub seal in the torque converter housing. Use Special Service Tool: 307-575 Converter Seal Installer. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

75. NOTE: FWD vehicles

    Install a new RH halfshaft seal on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-582A Cover Axle Seal Installer.

    Courtesy of FORD MOTOR COMPANY

76. NOTE: Support the torque converter housing using blocks of wood, or damage to the torque converter housing may occur.

    Using the special tool, install the RH halfshaft seal in the torque converter housing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-582A Cover Axle Seal Installer. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

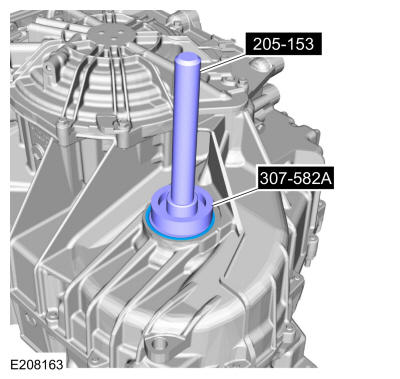

77. Install a new halfshaft seal on special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-582A Cover Axle Seal Installer.

    Courtesy of FORD MOTOR COMPANY

78. Using the special tool, install the halfshaft seal in the transmission case. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-582A Cover Axle Seal Installer.

    Courtesy of FORD MOTOR COMPANY

79. NOTE: Only thread the bolts 6 to 8 turns or do not exceed 12 mm (0.472 in) in the torque converter. If the bolts are threaded too far, damage to the torque converter clutch surface can occur, causing torque converter failure.

    Install two 10 mm x 1.50 bolts into the torque converter 6 to 8 turns to assist in handling the torque converter and install the torque converter in the transmission.

    Courtesy of FORD MOTOR COMPANY

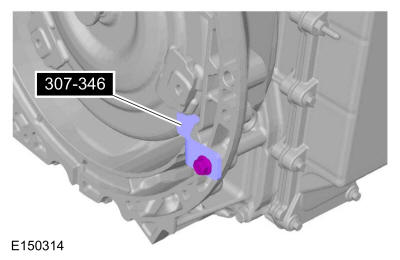

80. Install the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

    Courtesy of FORD MOTOR COMPANY

81. Install the transmission. Refer to: Transmission .
