Transfer Shaft: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the transfer shaft bearings for damage or excessive wear. Install new if necessary.
    GFD195194Courtesy of FORD MOTOR COMPANY

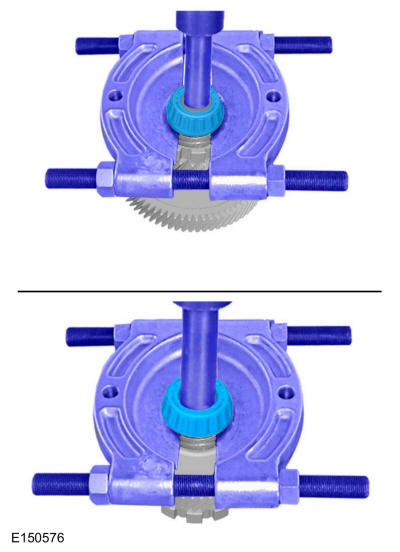

  2. Using the general equipment, remove the transfer shaft bearings. Use the General Equipment: Bearing Separator Use the General Equipment: Hydraulic Press
    GFD195195Courtesy of FORD MOTOR COMPANY
  3. Inspect the transfer shaft assembly for damage.

    1. Inspect the park pawl wheel for damage and install new, if necessary.
    2. Inspect the transfer shaft and transfer shaft input gear for damage and install new, if necessary.

    GFD195196Courtesy of FORD MOTOR COMPANY
