Variable Valve Timing (VVT) Oil Control Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the valve cover. Refer To: Valve Cover .

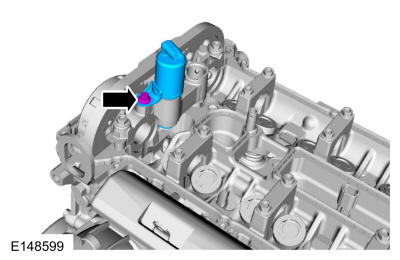

- Remove the bolt and the VCT oil control solenoid.
Torque: 89 lb.in (10 Nm)
