Manifold Absolute Pressure (MAP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

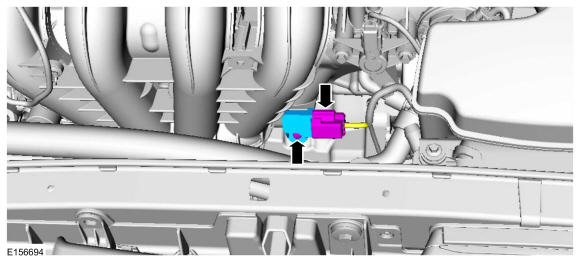

- Disconnect the electrical connector, remove the retainer and the MAP sensor.
Torque: 27 lb.in (3 Nm)
 Courtesy of FORD MOTOR COMPANY
|
