Heated Oxygen Sensor (HO2S): Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the HO2S electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- Detach the wiring harness retainer.
 Courtesy of FORD MOTOR COMPANY
|

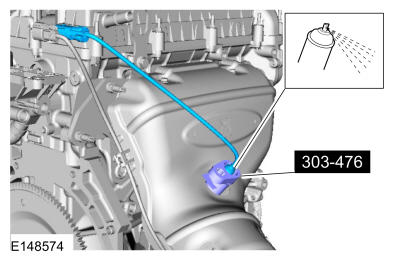

- Remove the HO2S.
Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft ® Penetrating and Lock Lubricant / XL-1
 Courtesy of FORD MOTOR COMPANY
|
