Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

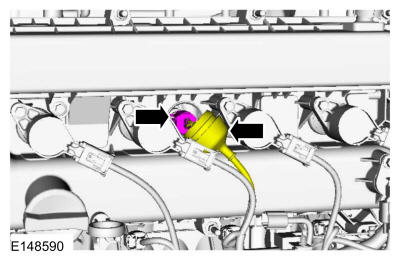

  1. Disconnect the CHT electrical connector.
    GFD193930Courtesy of FORD MOTOR COMPANY

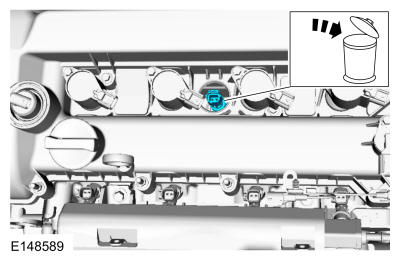

  2. Remove and discard the CHT sensor.

    Torque: 106 lb.in (12 Nm)

    GFD193931Courtesy of FORD MOTOR COMPANY
