Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.

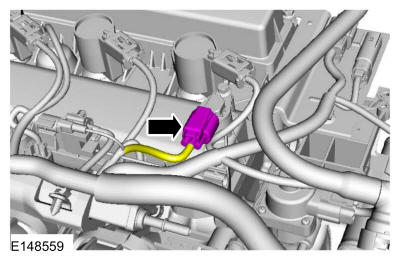

- Disconnect the exhaust CMP sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
-

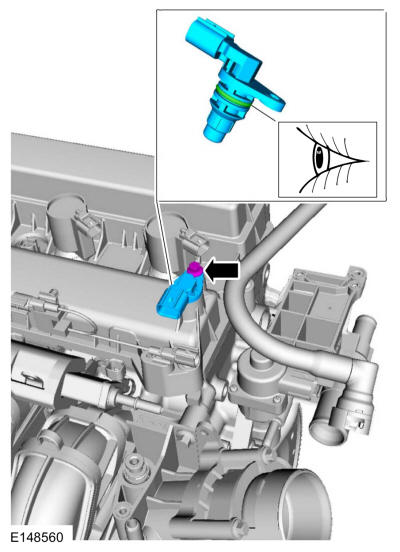

NOTE:
The O-ring seal is to be reused unless damaged.
Remove the bolt and the CMP sensor.
 Courtesy of FORD MOTOR COMPANY
|
