Camshaft Position (CMP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

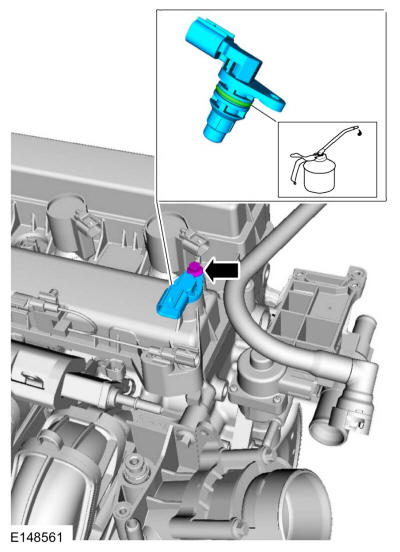

- Lubricate the O-ring seal.
  Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- Install the CMP sensor and tighten the bolt.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY
Connect the exhaust CMP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
