Variable Camshaft Timing (VCT) Unit: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: It may be necessary to Use an open-ended wrench to turn the camshafts by the hexagon to align the camshafts.

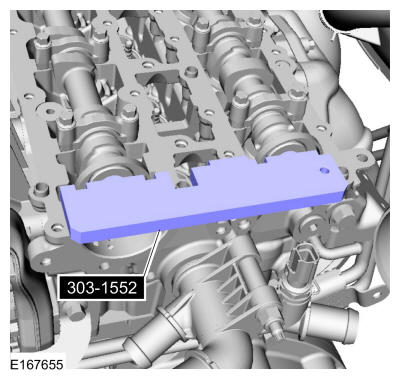

    Install Special Service Tool: 303-1552 Alignment Tool, Camshaft.

    GFD190883Courtesy of FORD MOTOR COMPANY

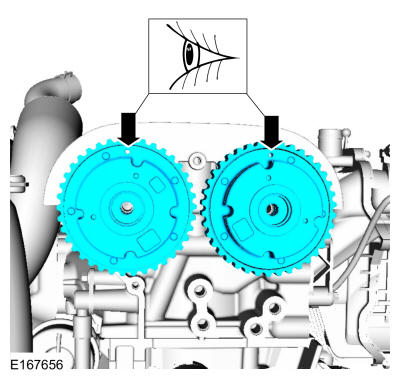

  2. Install the VCT unit at the 12 o'clock position.
    GFD190884Courtesy of FORD MOTOR COMPANY
  3. NOTE: The timing mark of each VCT unit must be at the 12 o'clock position.
    NOTE: Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.

    Install the new VCT unit bolts.

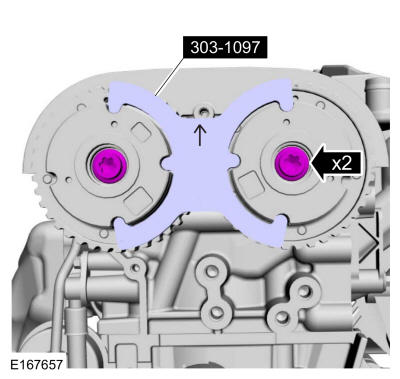

    Install Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

    Torque: 18 lb.ft (25 Nm)

    GFD190885Courtesy of FORD MOTOR COMPANY

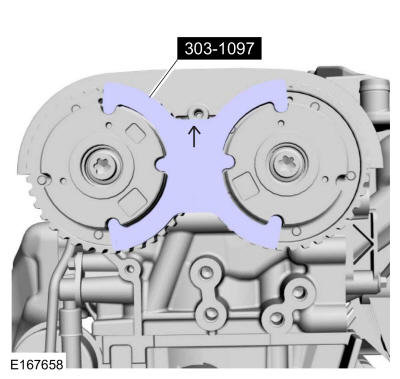

  4. Remove Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.
    GFD190886Courtesy of FORD MOTOR COMPANY
  5. Remove Special Service Tool: 303-1552 Alignment Tool, Camshaft.
    GFD190883Courtesy of FORD MOTOR COMPANY
  6. NOTE: Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.

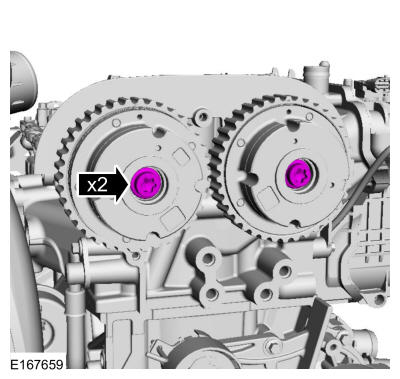

    Tighten the VCT units bolts.

    Torque: 75 °

    GFD190887Courtesy of FORD MOTOR COMPANY
  7. NOTE: The special tool can only be installed if the valve timing is correct.

    Install Special Service Tool: 303-1552 Alignment Tool, Camshaft.

    GFD190883Courtesy of FORD MOTOR COMPANY
  8. NOTE: The timing mark of each VCT unit must be at the 12 o'clock position.

    If the special tools cannot be installed, repeat the adjustment according to the preceding steps.

    GFD190886Courtesy of FORD MOTOR COMPANY
  9. Remove Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.
    GFD190886Courtesy of FORD MOTOR COMPANY
  10. Remove Special Service Tool: 303-1552 Alignment Tool, Camshaft.
    GFD190883Courtesy of FORD MOTOR COMPANY
  11. NOTE: Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.

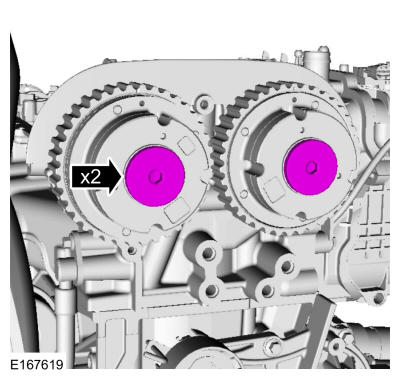

    Install the VCT unit caps.

    Torque: 142 lb.in (16 Nm)

    GFD190881Courtesy of FORD MOTOR COMPANY
  12. NOTE: The timing mark of each VCT unit must be at the 12 o'clock position.

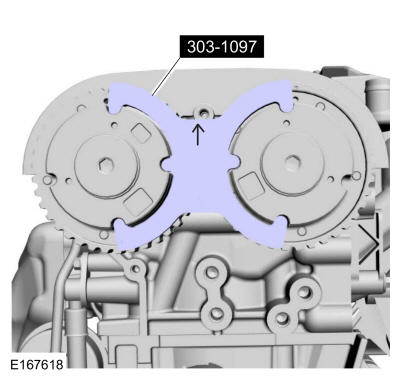

    Install Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

    GFD190880Courtesy of FORD MOTOR COMPANY

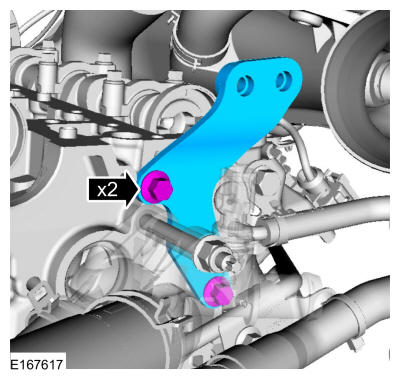

  13. Install the engine lifting bracket and the bolts.

    Torque: 168 lb.in (19 Nm)

    GFD190879Courtesy of FORD MOTOR COMPANY

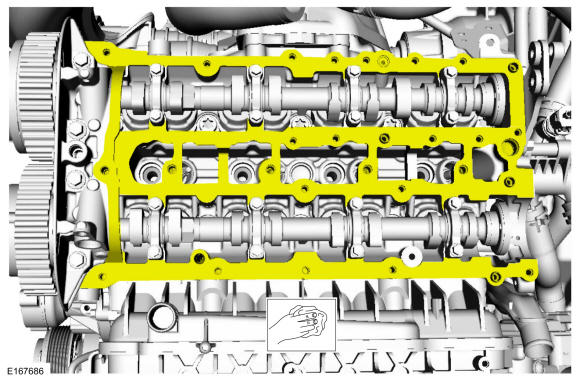

  14. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD190888Courtesy of FORD MOTOR COMPANY
  15. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD190889Courtesy of FORD MOTOR COMPANY

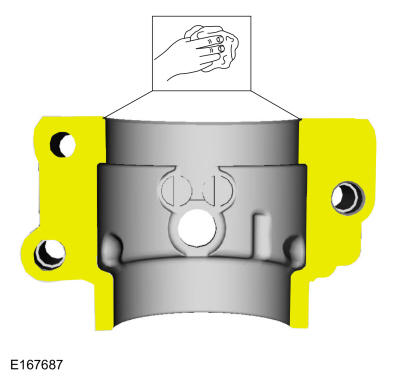

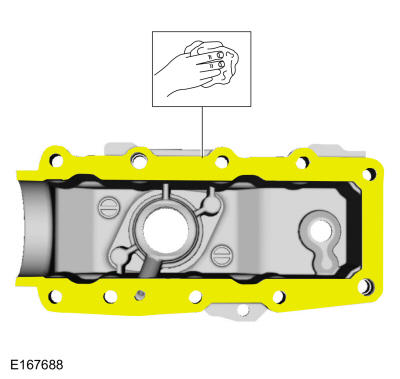

  16. NOTE: Do not Use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD190890Courtesy of FORD MOTOR COMPANY

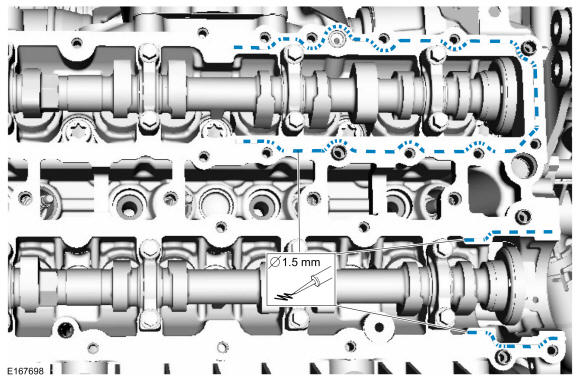

  17. Apply a 1.5 mm (0.059 in) beads of gasket maker as shown below.

    Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

    GFD190891Courtesy of FORD MOTOR COMPANY
    • Install the brake vacuum pump cap, bolts and the stud.

      Torque:

      1-3:Stage 1: 35 lb.in (4 Nm)

      Stage 2: 89 lb.in (10 Nm)

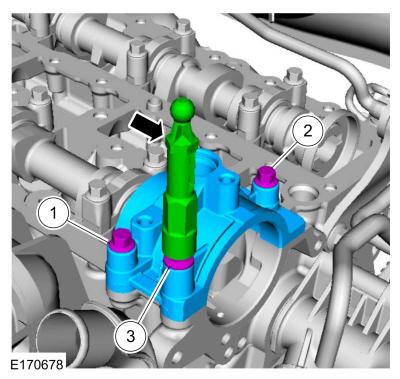

    • Install the engine cover mounting stud.

      Torque: 44 lb.in (5 Nm)

    GFD190892Courtesy of FORD MOTOR COMPANY
    • Install the new O-ring seal.

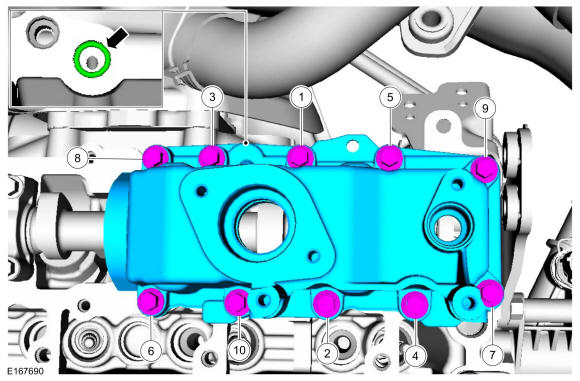

    • Install the high-pressure fuel pump drive unit and the bolts, tighten in sequence shown below in 3 stages.

      Torque:

      Stage 1: 1-8: 35 lb.in (4 Nm)

      Stage 2: 1-8: 124 lb.in (14 Nm)

      Stage 3: 9-10: 97 lb.in (11 Nm)

    Fig 1: High-Pressure Fuel Pump Drive Unit Bolts Tightening Sequence
    GFD190893Courtesy of FORD MOTOR COMPANY

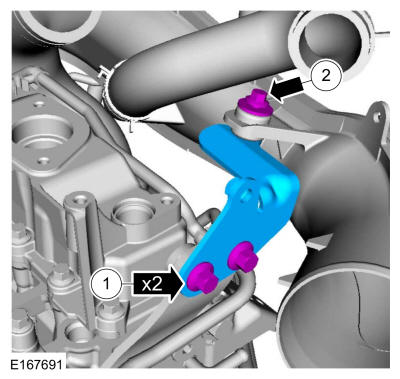

  18. Install the support bracket and the bolts.

    Torque:

    1: 97 lb.in (11 Nm)

    2: 71 lb.in (8 Nm)

    GFD190894Courtesy of FORD MOTOR COMPANY

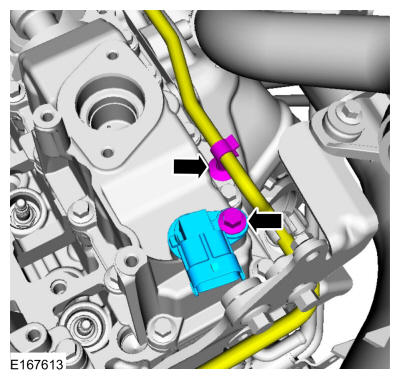

    • Install the CMP sensor and the bolt.

      Torque: 80 lb.in (9 Nm)

    • Position the wiring harness and attach the retainer.

    GFD190875Courtesy of FORD MOTOR COMPANY

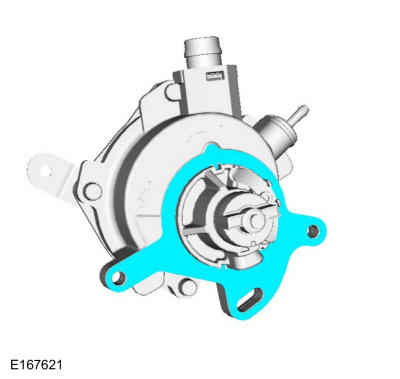

  19. Install the new vacuum pump gasket.
    GFD190895Courtesy of FORD MOTOR COMPANY

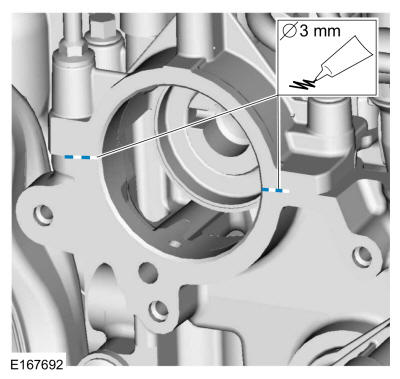

  20. Apply a 3 mm (0.118 in) beads of flange sealant as shown below.

    Material: Flange Sealant - Anaerobic / Loctite ® 51031 (WSK-M2G348-A7)

    GFD190896Courtesy of FORD MOTOR COMPANY
  21. NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.
    NOTE: Install new bolts.

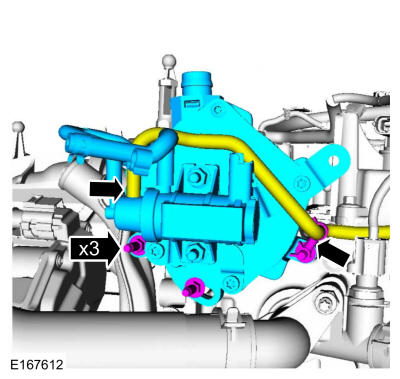

    • Install the vacuum pump and the stud bolts.

      Torque: 89 lb.in (10 Nm)

    • Connect the vacuum hose and attach the retainer.

    GFD190897Courtesy of FORD MOTOR COMPANY

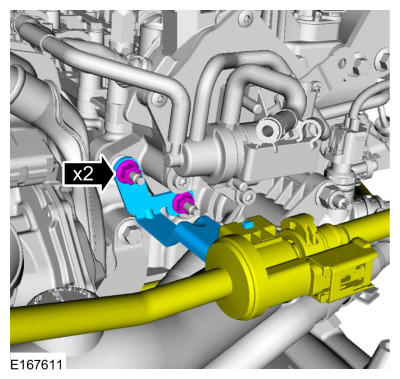

  22. Position the EVAP canister purge valve, install the bracket and the nuts.

    Torque: 62 lb.in (7 Nm)

    GFD190872Courtesy of FORD MOTOR COMPANY

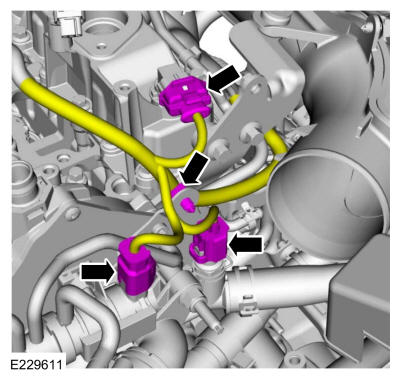

  23. Connect the wiring harness electrical connectors and retainer.
    GFD190871Courtesy of FORD MOTOR COMPANY
  24. Install the following items:

    1. Install the timing belt. Refer to: Timing Belt .
    2. Install the valve cover. Refer to: Valve Cover .

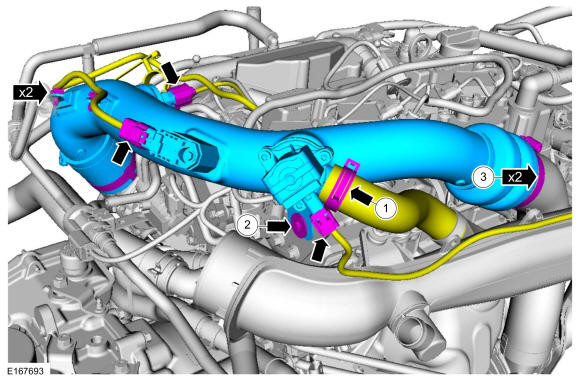

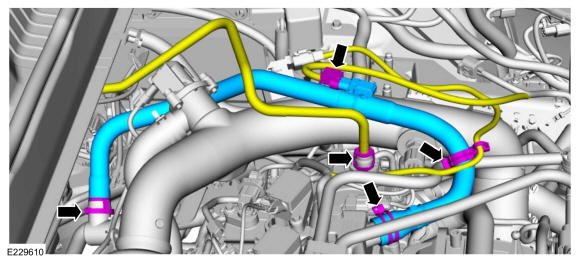

    1. Install the TC outlet pipe, bolt and tighten the clamps.

      Torque:

      2: 71 lb.in (8 Nm)

      3: 44 lb.in (5 Nm)

    2. Connect the TC bypass hose.

      Use the General Equipment: Hose Clamp Remover/Installer

    3. Attach the wiring harness retainers and connect the electrical connectors.
    GFD190898Courtesy of FORD MOTOR COMPANY
    • Position and connect the brake vacuum hose.

    • Install the PCV hose.

      Use the General Equipment: Hose Clamp Remover/Installer

    • Connect the wiring harness electrical connector and retainer.

    GFD190869Courtesy of FORD MOTOR COMPANY
  25. Install the following items:

    1. Install the air cleaner. Refer to: Air Cleaner .
    2. Install the upper air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    3. Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .
