Valve Cover: Removal

WARNING: This page is about a different variant/trim than selected.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .

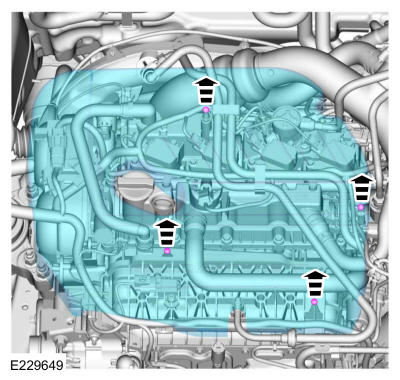

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

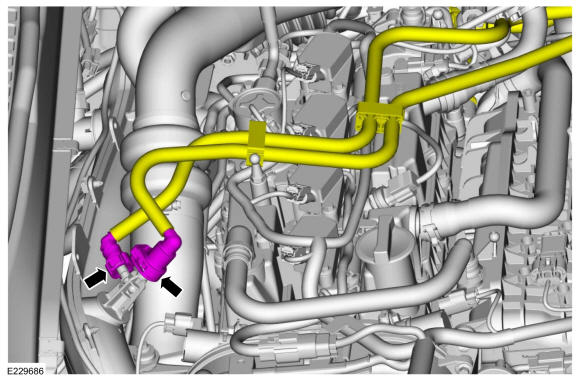

Disconnect the EVAP canister purge valve tubes from the TC inlet pipe.

Courtesy of FORD MOTOR COMPANY

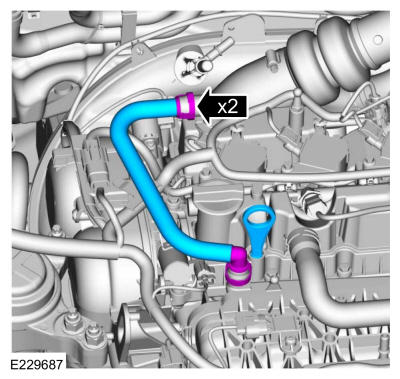

- Remove the oil level indicator.
- Disconnect the couplings and remove the hose.
Courtesy of FORD MOTOR COMPANY
- Detach the wiring harness retainer from the hose.

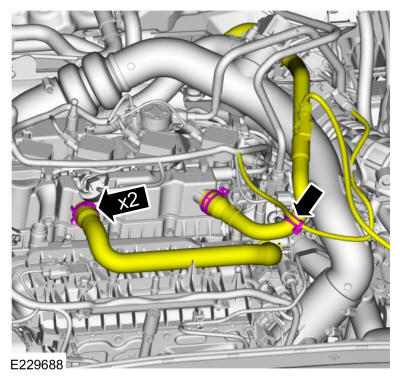

- Release the clamps and position the hoses aside.
  Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
Remove the fuel rail. Refer to: Fuel Rail .
NOTE: Note the position of the VCT oil control solenoids before removal.

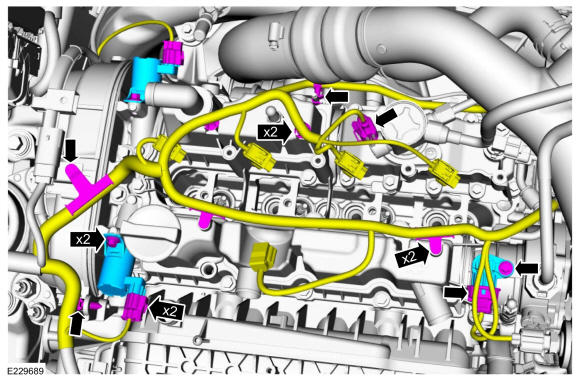

- Detach the wiring harness retainers and disconnect the wiring harness electrical connectors.
- Remove the bolts and the VCT oil control solenoids.
- Remove the bolt and the intake CMP sensor.
Courtesy of FORD MOTOR COMPANY
NOTE: The O-ring seals are to be re-used unless damaged.

Inspect the VCT oil control solenoid O-ring seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not set the valve cover sealing surface face down on a bench as the check valve and splitter leg is susceptible to breakage.

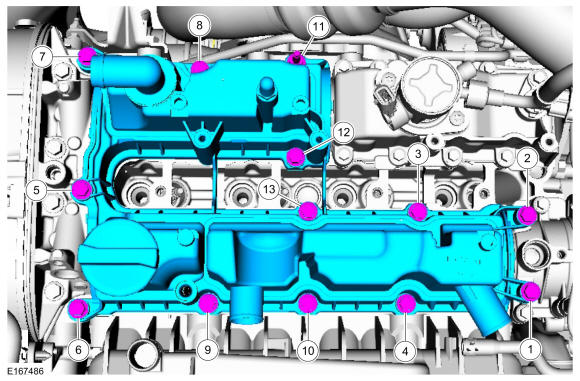

Remove the bolts in sequence shown below and the valve cover.

Fig 1: Valve Cover Bolts Loosening Sequence
Courtesy of FORD MOTOR COMPANY

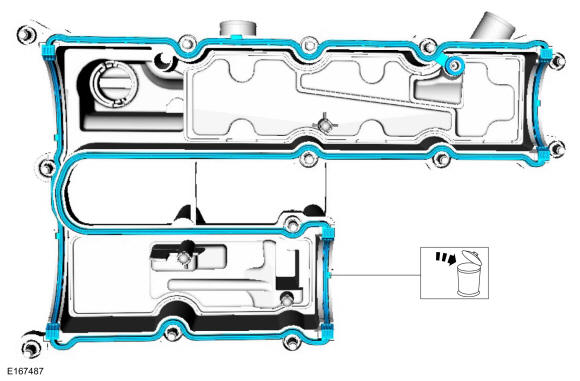

Remove and discard the valve cover gasket.

Courtesy of FORD MOTOR COMPANY
