Oil Pump: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the crankshaft front seal. Refer to: Crankshaft Front Seal .
- Remove Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.
-
NOTE: There are different length of bolts noted in removal.NOTE: Install the engine mount bracket to support the engine during oil pan removal.
Install the engine mount support bracket and the bolts.
Torque: 41 lb.ft (55 Nm)
- Install the engine mount stud.
Torque: 89 lb.in (10 Nm)
-
NOTE: Install engine mount to support the engine during oil pan removal.

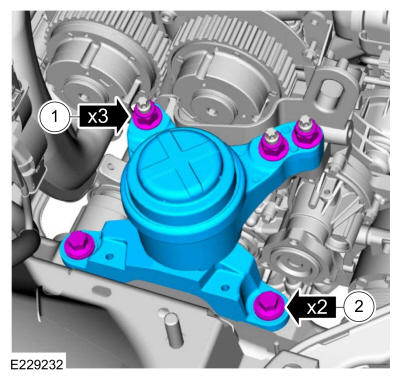

Install the engine mount, nuts and the bolts.
Torque:
1: 85 lb.ft (115 Nm)
2: 66 lb.ft (90 Nm)
- Remove the oil pan. Refer to: Oil Pan .
- Remove the bolts and the oil pump screen and pickup tube.
-
NOTE: Note the different lengths of the bolts.
Remove the bolts and the oil pump.

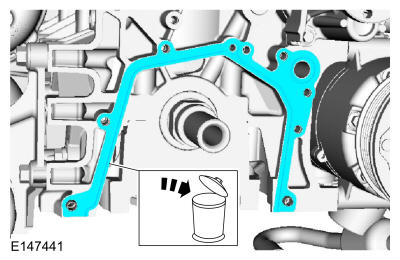

- Remove and discard the oil pump gasket.
