Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

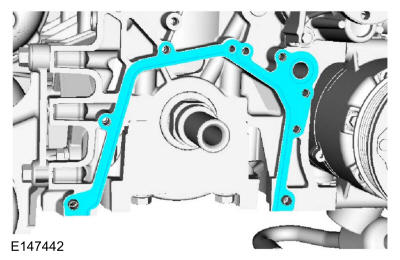

Install the new oil pump gasket.

Courtesy of FORD MOTOR COMPANY
Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
NOTE: Only tighten the bolts finger tight at this stage.

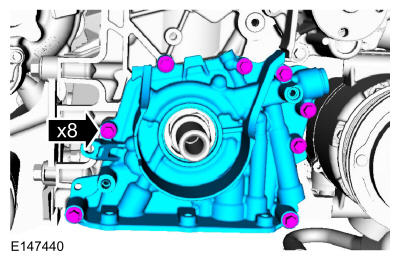

Install the oil pump and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY
Tighten the oil pump mounting bolts in sequence shown below in 2 stages.
Torque:

Stage 1: 49 lb.in (5.5 Nm)

Stage 2: 89 lb.in (10 Nm)

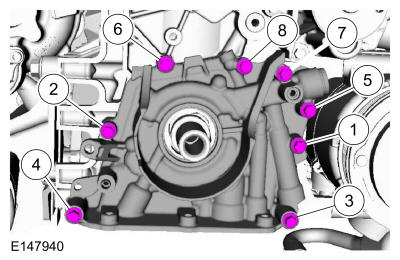

Fig 1: Oil Pump Mounting Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: The O-ring seal is to be re-used unless damaged.

Inspect the oil pump screen and pickup tube O-ring seal.

Courtesy of FORD MOTOR COMPANY

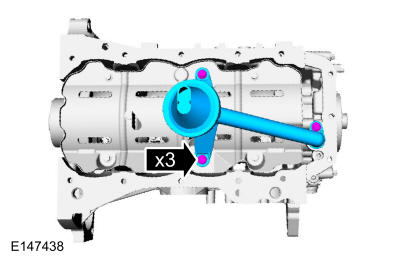

Install the oil pump screen and pickup tube and the bolts.
Torque: 84 lb.in (9.5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the oil pan. Refer to: Oil Pan .

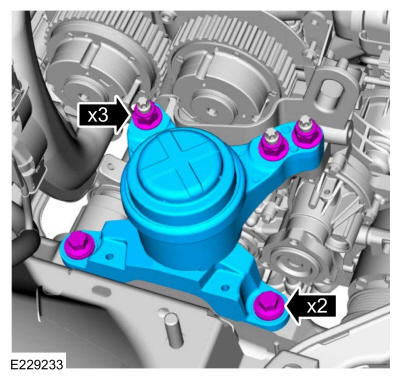

Remove the bolts, nuts and the engine mount.

Courtesy of FORD MOTOR COMPANY

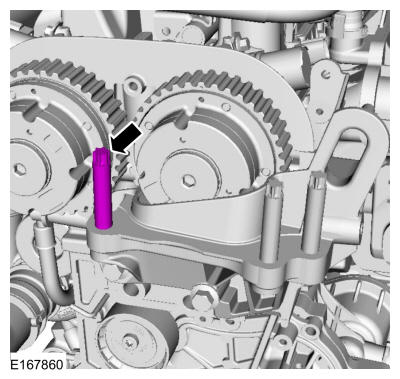

Remove the engine mount stud.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the different lengths of the bolts for installation.

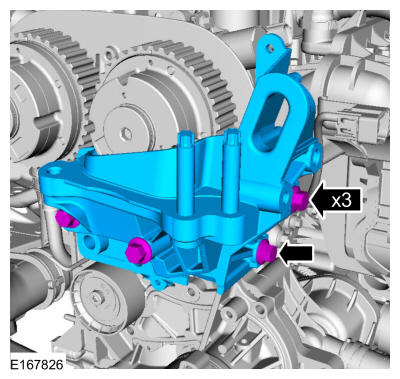

Remove the bolts and the engine mount bracket.

Courtesy of FORD MOTOR COMPANY

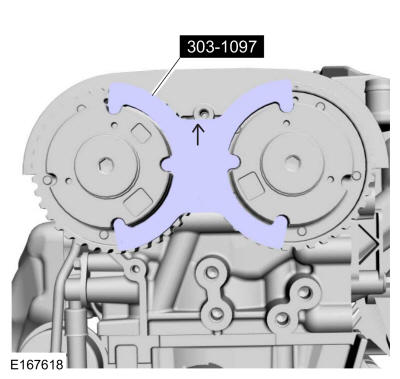

Install Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

Courtesy of FORD MOTOR COMPANY
Install the crankshaft front seal. Refer to: Crankshaft Front Seal .
