Oil Pressure Switch: Installation
WARNING: This page is about a different variant/trim than selected.

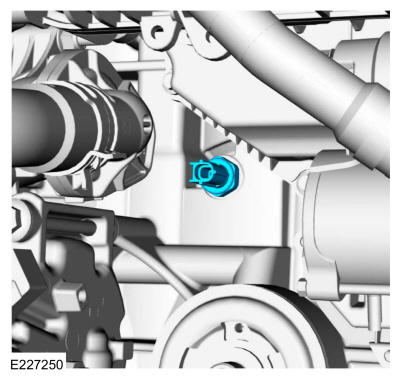

- Install a new oil pressure switch.
Torque: 159 lb.in (18 Nm)
- Connect the engine oil pressure switch electrical connector.
- Lubricate the O-ring seal and install the new engine oil filter.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Torque: 128 lb.in (14.5 Nm)
- Install the engine undershield and the retainers.
- Inspect and adjust the engine oil level.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
