Removal And Installation: Flexplate: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission. Refer to: Transmission .

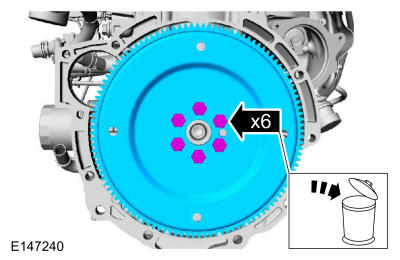

  2. Remove the bolts and the flexplate. Discard the bolts.
    GFD190745Courtesy of FORD MOTOR COMPANY
