Removal And Installation: Flexplate: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Only tighten the bolts finger-tight at this stage.

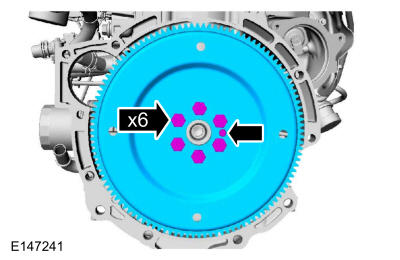

Install the flexplate and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY

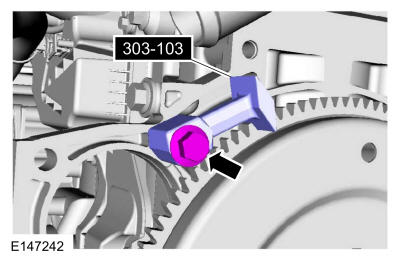

Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

Courtesy of FORD MOTOR COMPANY
Tighten the flexplate bolts in sequence shown below in 4 stages.
Torque:

Stage 1: 133 lb.in (15 Nm)

Stage 2: 18 lb.ft (25 Nm)

Stage 3: 22 lb.ft (30 Nm)

Stage 4: 90 °

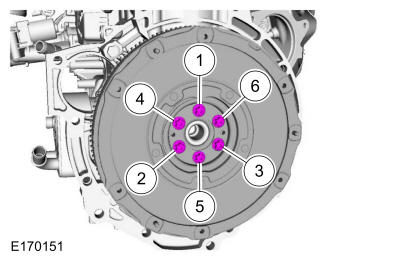

Fig 1: Flexplate Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

Courtesy of FORD MOTOR COMPANY
Install the transmission. Refer to: Transmission .
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
