Engine Mount: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

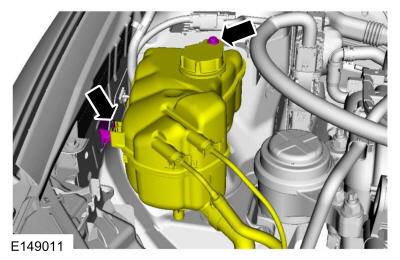

Release the tab, remove the retainer and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the engine undershield.

Courtesy of FORD MOTOR COMPANY
Install the following items:
- Use the General Equipment: Trolley Jack
  Use the General Equipment: Wooden Block
Courtesy of FORD MOTOR COMPANY
Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

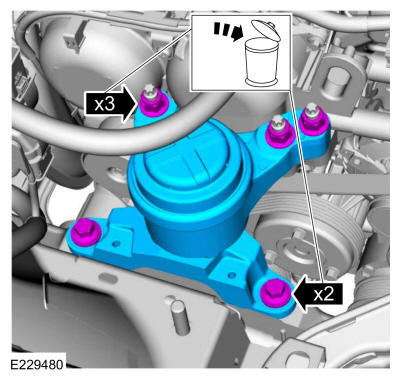

- Remove the bolts, nuts and the engine mount.
- Discard the nuts and bolts.
Courtesy of FORD MOTOR COMPANY
