Engine Mount: Installation

WARNING: This page is about a different variant/trim than selected.

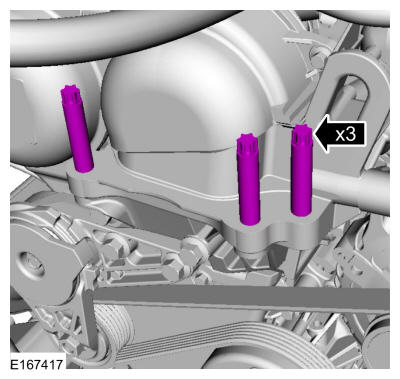

Tighten the engine mount studs.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

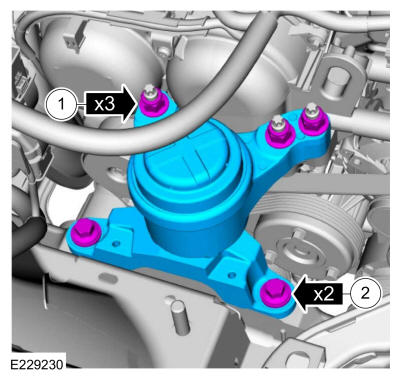

1. Install the engine mount and the new nuts.
  Torque: 85 lb.ft (115 Nm)
2. Install the new engine mount bolts finger-tight.
Courtesy of FORD MOTOR COMPANY
Remove the following items:
- Use the General Equipment: Trolley Jack
  Use the General Equipment: Wooden Block
Courtesy of FORD MOTOR COMPANY

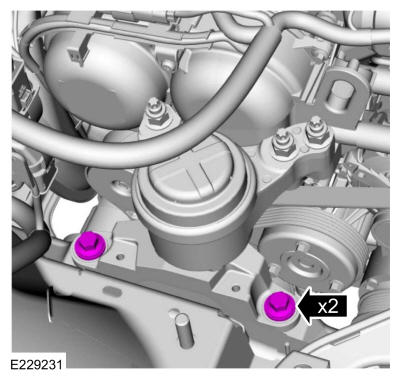

Tighten the engine mount bolts.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY
Position the degas bottle and install the retainer.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
