Crankshaft Rear Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the following items:

    1. Refer to: Flexplate .
    2. Refer to: Oil Pan .

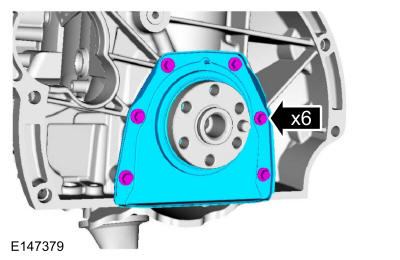

  2. Remove the bolts and the crankshaft rear seal.
    GFD190720Courtesy of FORD MOTOR COMPANY
