Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the mating faces are clean and free of foreign material.

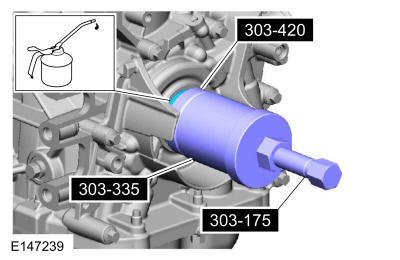

Using the special tools, lubricate and install the new crankshaft front seal.

Use Special Service Tools: 303-175 (T82L-6316-A) Installer, Crankshaft Vibration Damper, 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal, 303-420 (T92P-6701-BH) Installer, Crankshaft Front Oil Seal.

Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY
Install the timing belt. Refer to: Timing Belt .
