Camshaft Seal: Installation
WARNING: This page is about a different variant/trim than selected.

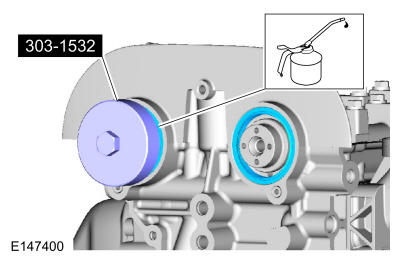

- Using the special tool, install the new camshaft seals.
Use Special Service Tool: 303-1532 Installer, Camshaft Seal.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- Install the VCT unit. Refer to: Variable Camshaft Timing (VCT) Unit .
