Disassembly And Assembly Of Subassemblies: Piston: Disassembly
WARNING: This page is about a different variant/trim than selected.

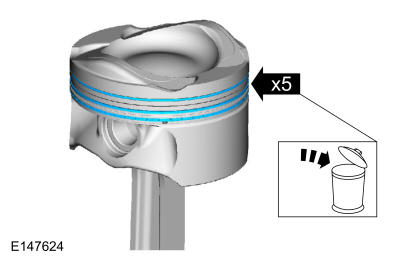

- Remove and discard the piston rings.
-

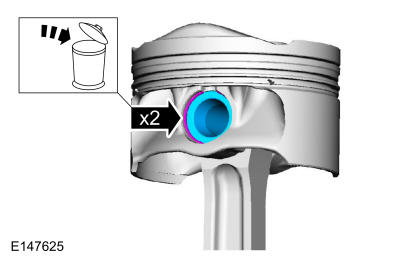

- Remove and discard the piston pin retainers.
- Remove the piston pin.
- Remove the piston from the connecting rod.

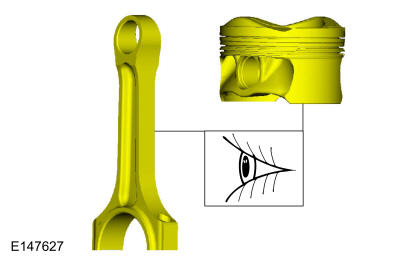

- Inspect the piston and connecting rod. Refer to: Piston Inspection
.
