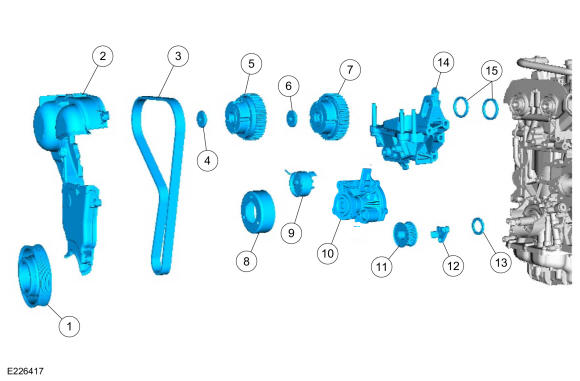

Exploded View Of Front Engine
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6B319 | Crankshaft pulley |
| 2 | 6P073 | Timing belt cover |
| 3 | 6K288 | Timing belt |
| 4 | W710954 | Exhaust camshaft phaser and sprocket plug and seal |
| 5 | 6C524 | Exhaust variable camshaft timing (VCT) unit |
| 6 | W710954 | Intake camshaft phaser and sprocket plug and seal |
| 7 | 6C524 | Intake variable camshaft timing (VCT) unit |
| 8 | 8509 | Coolant pump pulley |
| 9 | 6K254 | Timing belt tensioner |
| 10 | 8B595 | Coolant pump |
| 11 | 6306 | Crankshaft sprocket gear |
| 12 | 6C315 | Crankshaft Position(CKP) sensor |
| 13 | 6700 | Crankshaft oil seal |
| 14 | 6F001 | Engine mounting bracket assembly |
| 15 | 6K292 | Camshaft oil seals |
