Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

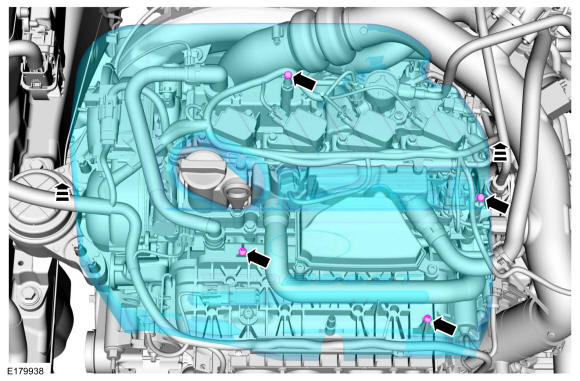

- Remove the engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|

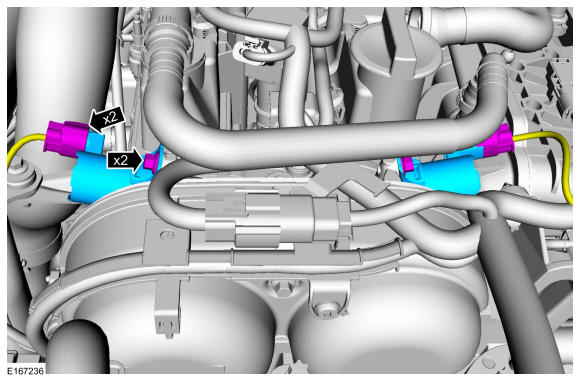

- Disconnect the electrical connectors, remove the bolts and the VCT oil control solenoids.
Torque: 71 lb.in (8 Nm)
 Courtesy of FORD MOTOR COMPANY
|
