Powertrain Control Module (PCM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine.

Use the General Equipment: Ford Diagnostic Equipment

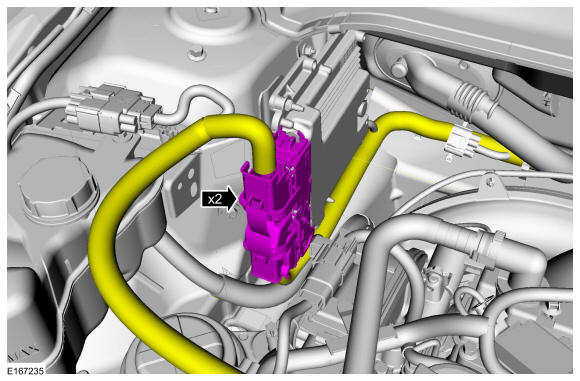

Disconnect the PCM electrical connectors.

Courtesy of FORD MOTOR COMPANY

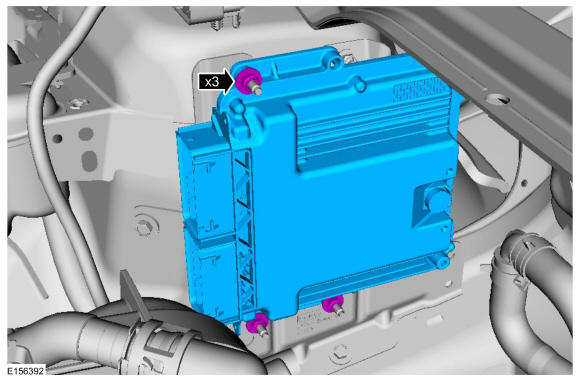

Remove the bolts and the PCM.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
