Knock Sensor (KS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove intake manifold. Refer to: Intake Manifold .
-

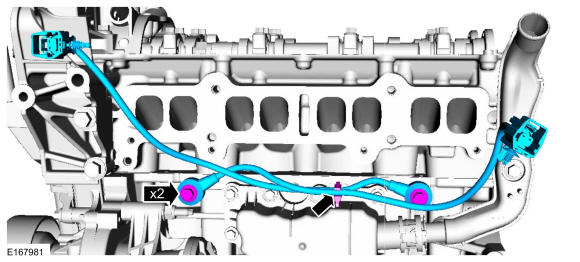

NOTE: The head of the KS should not touch any other component.NOTE: The LHKS must be at the 10 o'clock position and the RHKS must be at the 2 o'clock position.
Remove the bolts and the KS sensors.
Torque: 159 lb.in (18 Nm)
