Intake Air Temperature 2 (IAT2) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

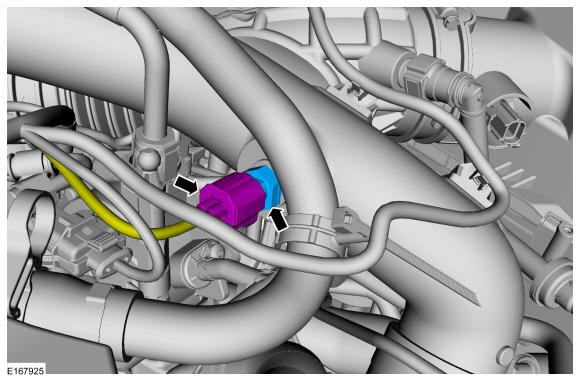

  1. Disconnect the IAT sensor electrical connector and remove the IAT sensor.
    GFD193869Courtesy of FORD MOTOR COMPANY

    Torque: 124 lb.in (14 Nm)
