Heated Oxygen Sensor (HO2S): Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the engine appearance cover.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

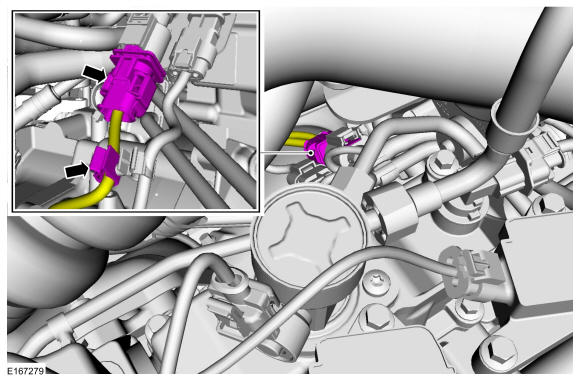

- Disconnect the HO2S electrical connector and detach the wiring harness retainer.

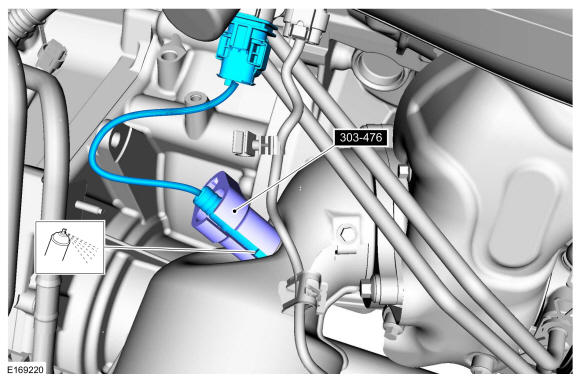

- Remove the HO2S.
Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft ® Penetrating and Lock Lubricant / XL-1
