Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
-
NOTE: Make sure that a new component is installed.

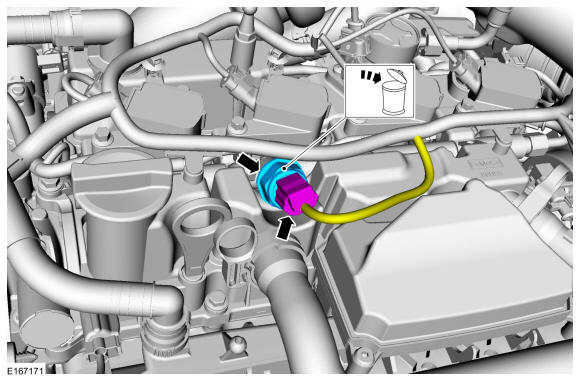

Disconnect the FRP sensor electrical connector and remove the FRP sensor.
Torque: 24 lb.ft (32.5 Nm)
