Cylinder Head Temperature (CHT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
-

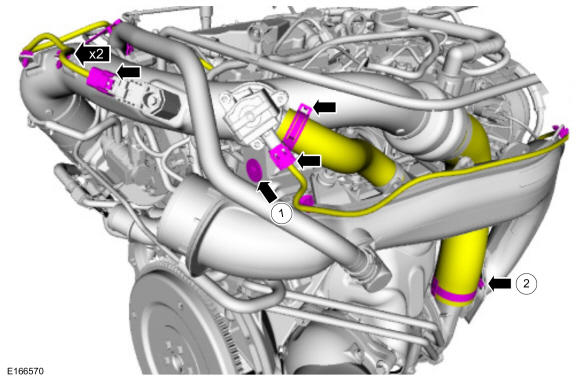

- Disconnect the turbo bypass valve and boost pressure sensor electrical connector. Remove the mounting screw and release the wiring retainers.
Torque: 71 lb.in (8 Nm)
- Disconnect the turbo bypass valve hose and the turbocharger outlet pipe clamp.
Torque: 44 lb.in (5 Nm)
- Disconnect the turbo bypass valve and boost pressure sensor electrical connector. Remove the mounting screw and release the wiring retainers.
-

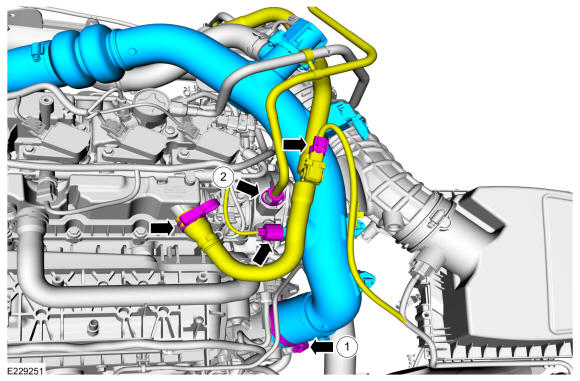

- Loosen the turbocharger outlet clamp and disconnect the IAT2 and crankcase pressure sensors.
Torque: 44 lb.in (5 Nm)
- Release the quick release couplers and remove the turbocharger outlet pipe. Refer to: Quick Release Coupling .
- Loosen the turbocharger outlet clamp and disconnect the IAT2 and crankcase pressure sensors.
-
- Disconnect the turbochager inlet pipe clamp.
Torque: 44 lb.in (5 Nm)

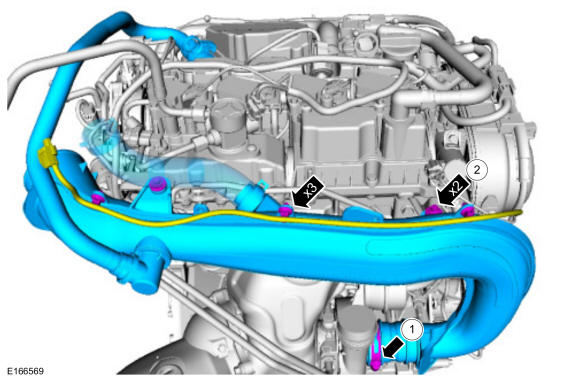

- Remove the mounting retainers and release the wiring harness retainers, remove the turbocharger inlet pipe.
Torque: 71 lb.in (8 Nm)
- Disconnect the turbochager inlet pipe clamp.

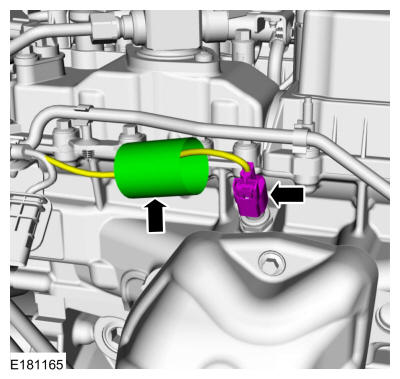

- Slide the connector cover and disconnect the CHT sensor electrical connector.

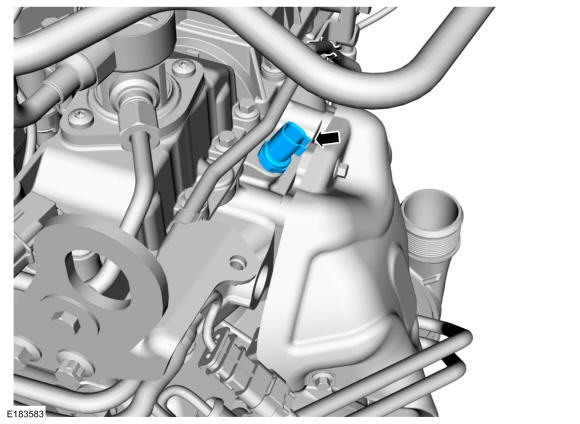

- Remove the CHT sensor.
Torque: 89 lb.in (10 Nm)
