Charge Air Cooler Coolant Temperature (CACCT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Jacking and Lifting - Overview .
NOTE: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

Loosen the coolant expansion tank cap. Loosen: 2 turn(s)
Tighten the coolant expansion tank cap.
Torque: 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Remove the front underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: Have the new component ready to install to reduce coolant loss.

NOTE: Be prepared to capture escaping fluid with a shop towel.

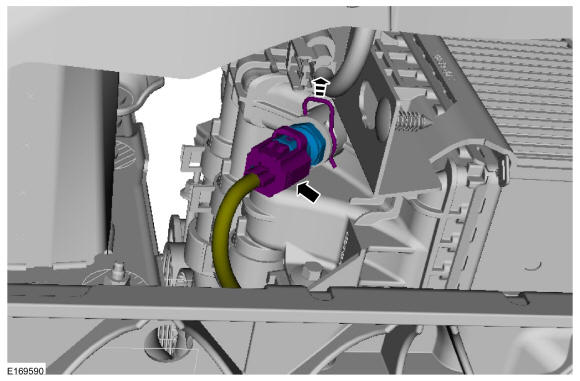

- Disconnect the charge air cooler coolant temperature sensor electrical connector.
- Release the retaining clip.
- Remove the charge air cooler coolant temperature sensor.
Courtesy of FORD MOTOR COMPANY
