Camshaft Position (CMP) Sensor LH: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

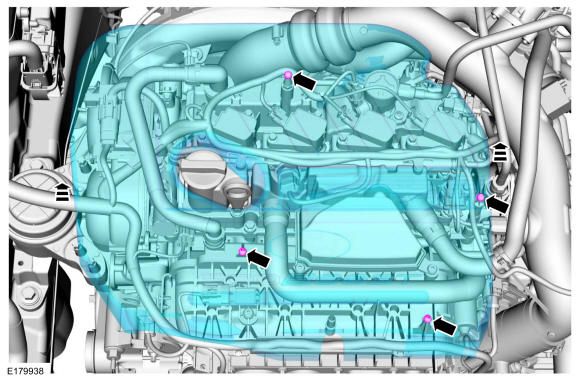

- Remove the engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|

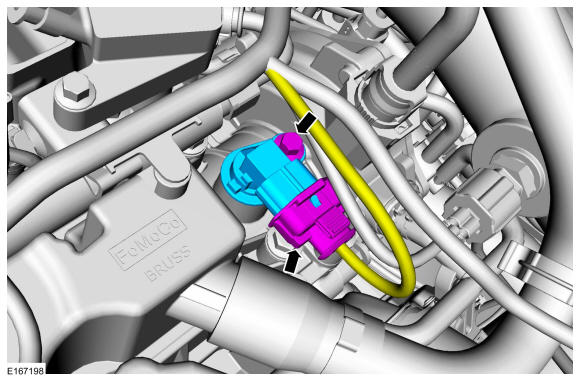

- Disconnect the CMP sensor electrical connector, remove the retainer and the CMP sensor.
Torque: 80 lb.in (9 Nm)
 Courtesy of FORD MOTOR COMPANY
|
