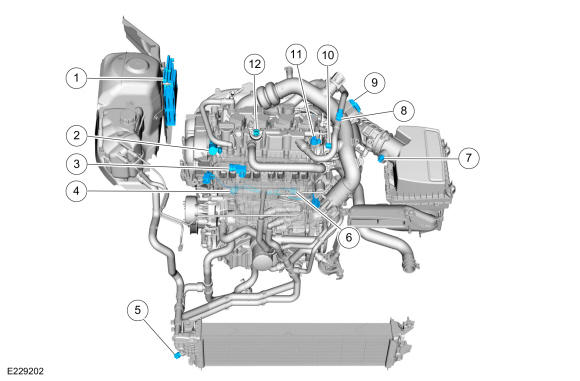

Electronic Engine Controls Component Location - LH
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
PCM |
| 2 |
VCT oil control solenoid intake |
| 3 |
MAPT sensor |
| 4 |
KS front |
| 5 |
CAC coolant temperature sensor |
| 6 |
KS rear |
| 7 |
IAT sensor |
| 8 |
Crankcase pressure sensor |
| 9 |
Turbocharger boost pressure sensor |
| 10 |
IAT2 |
| 11 |
CMP sensor LH intake |
| 12 |
FRP sensor |
