Accessory Drive - Component Location
WARNING: This page is about a different variant/trim than selected.

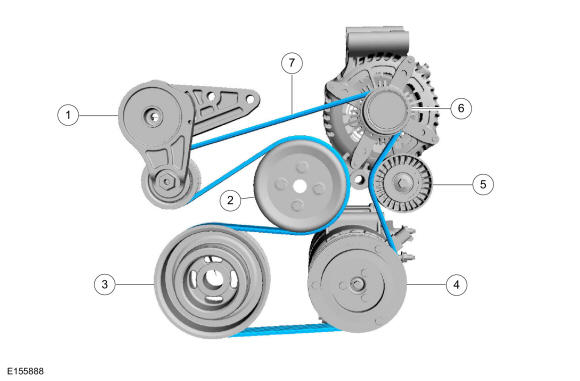

Early Build Vehicles
| Item | Description |
|---|---|
| 1 | Accessory drive belt tensioner |
| 2 | Water pump pulley |
| 3 | Crankshaft belt pulley |
| 4 | Pulley - A/C compressor |
| 5 | Drive belt idler pulley assembly |
| 6 | Generator pulley |
| 7 | Accessory drive belt |

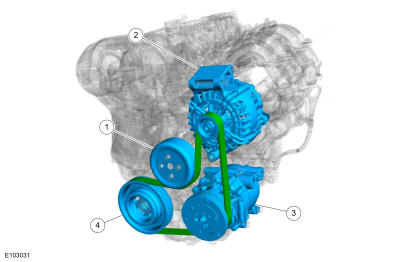

Late Build Vehicles
| Item | Description |
|---|---|
| 1 | Coolant pump pulley |
| 2 | Generator. |
| 3 | Air conditioning compressor |
| 4 | Crankshaft pulley / vibration damper |
