Auto-Start-Stop Deactivation Switch: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

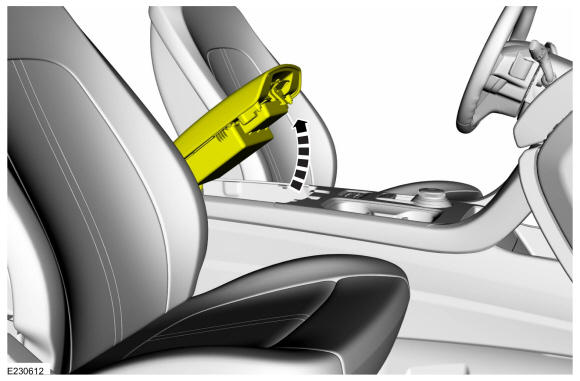

Open the floor console armrest.

Courtesy of FORD MOTOR COMPANY

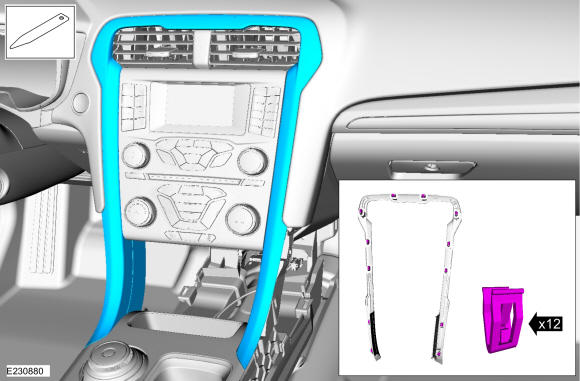

Remove the center trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
NOTE: RH side displayed, LH side similar.

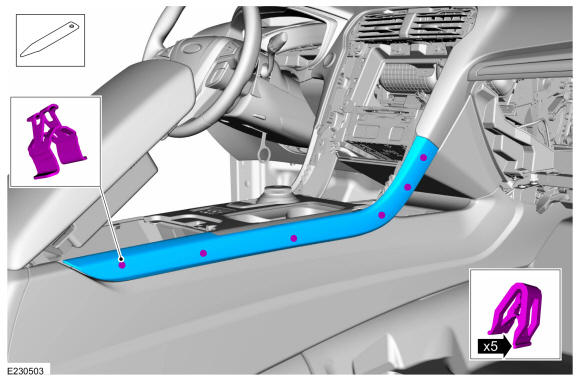

Both sides. Release the clips and remove the floor console finish panel.

Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
NOTE: RH side displayed, LH side similar.

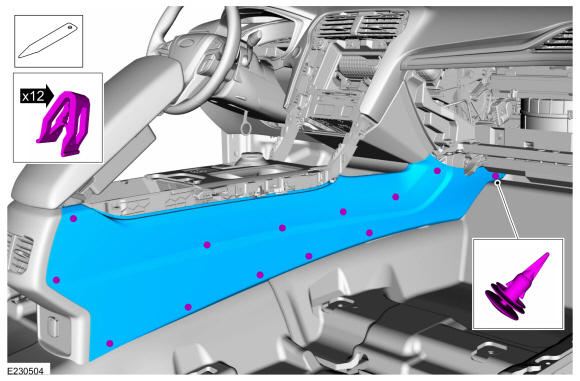

Both sides. Release the clips, push pin and remove the floor console side trim panel.

Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

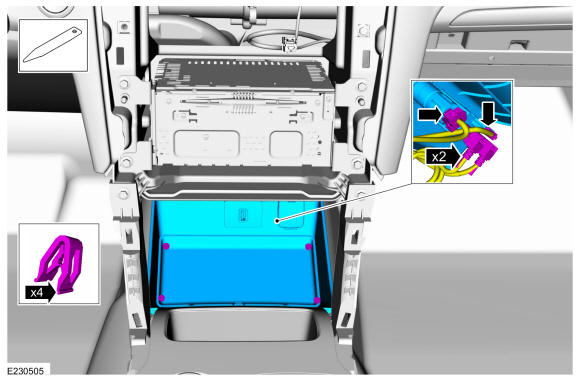

Release the clips and remove the lower center instrument panel storage bin.
- Disconnect the electrical connectors.
  Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

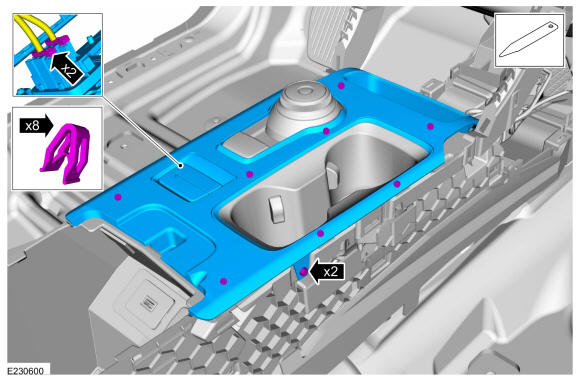

Release the clips, remove the screws and the floor console upper trim panel.
- Disconnect the electrical connectors.
  Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

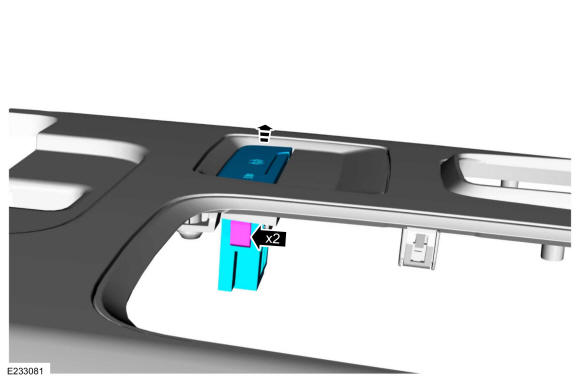

Release the tabs and remove the auto-start-stop deactivation switch.

Courtesy of FORD MOTOR COMPANY
