Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Position the transmission fluid auxiliary cooler tube assembly.
    GFD195303Courtesy of FORD MOTOR COMPANY
  2. Install the transmission fluid auxiliary cooler. Refer to: Transmission Fluid Auxiliary Cooler .
  3. Position the transmission fluid auxiliary cooler tube assembly-to-cooler bypass valve tube.
    GFD195302Courtesy of FORD MOTOR COMPANY

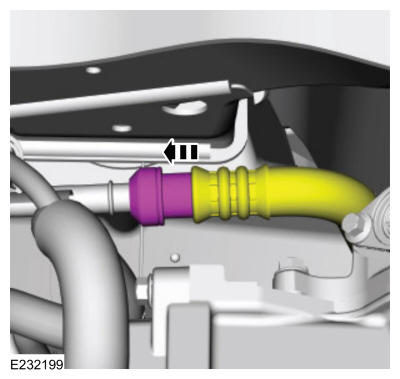

  4. Connect the transmission fluid auxiliary cooler tube assembly-to-cooler bypass valve tube quick connect coupling.
    GFD195304Courtesy of FORD MOTOR COMPANY
  5. Install the transmission fluid auxiliary cooler tube assembly-to-cooler bypass valve tube quick connect coupling secondary latch.
    GFD195300Courtesy of FORD MOTOR COMPANY
  6. Install the engine undershield and the fasteners.
    GFD195299Courtesy of FORD MOTOR COMPANY
  7. Install the LH fender splash shield. Refer to: Fender Splash Shield .
  8. Connect the transmission fluid auxiliary cooler tube assembly-to-cooler bypass valve tube to the valve and tighten the fitting.

    Torque: 22 lb.ft (30 Nm)

    GFD195298Courtesy of FORD MOTOR COMPANY

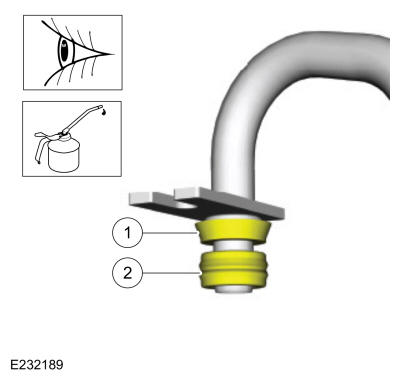

  9. Inspect the transmission fluid cooler tube assembly backing rings and seals for damage and install new backing rings or seals if necessary.

    1. Backing ring (7J324)
    2. Seal (7D285)

      Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

    GFD195305Courtesy of FORD MOTOR COMPANY
  10. Install the cooler bypass valve-to-transmission tube and the bolt.

    Torque: 80 lb.in (9 Nm)

    GFD195297Courtesy of FORD MOTOR COMPANY
  11. Tighten the cooler bypass valve-to-transmission tube fitting.

    Torque: 22 lb.ft (30 Nm)

    GFD195296Courtesy of FORD MOTOR COMPANY
  12. Inspect the transmission fluid cooler tube assembly backing rings and seals for damage and install new backing rings or seals if necessary.

    1. Backing ring (7J324)
    2. Seal (7D285)

      Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

    GFD195306Courtesy of FORD MOTOR COMPANY
  13. Install the transmission-to-cooler bypass valve tube and tighten the fitting.

    Torque: 22 lb.ft (30 Nm)

    GFD195295Courtesy of FORD MOTOR COMPANY
  14. Connect the transmission-to-cooler bypass valve tube to the transmission and install the bolt.
    GFD195293Courtesy of FORD MOTOR COMPANY
  15. Position the selector lever cable, install the bolts, and connect the selector lever cable to the transmission manual lever.

    Torque: 18 lb.ft (25 Nm)

    GFD195292Courtesy of FORD MOTOR COMPANY

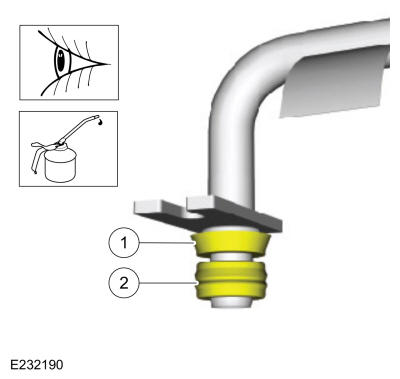

  16. Inspect the transmission fluid cooler tube assembly backing rings and seals for damage and install new backing rings or seals if necessary.

    1. Backing ring (7J324)
    2. Seal (7D285)

      Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

    GFD195277Courtesy of FORD MOTOR COMPANY
  17. Install the cooler bypass valve-to-transmission fluid cooler tube.

    1. Tighten the fitting.

      Torque: 22 lb.ft (30 Nm)

    2. Install the studbolt.

      Torque: 80 lb.in (9 Nm)

    GFD195273Courtesy of FORD MOTOR COMPANY
  18. NOTE: Do not install the air cleaner at this time.

    Install the battery tray. Refer to: Battery Tray .

  19. Inspect the transmission fluid cooler tube assembly backing rings and seals for damage and install new backing rings or seals if necessary.

    1. Backing ring (7J324)
    2. Seal (7D285)

      Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

    GFD195288Courtesy of FORD MOTOR COMPANY
  20. Install the transmission fluid cooler-to-transmission fluid auxiliary cooler tube assembly tube and the nut.

    Torque: 97 lb.in (11 Nm)

    GFD195291Courtesy of FORD MOTOR COMPANY
  21. Install the transmission fluid cooler-to-transmission fluid auxiliary cooler tube assembly tube studbolt to the transmission fluid cooler.

    Torque: 80 lb.in (9 Nm)

    GFD195283Courtesy of FORD MOTOR COMPANY
  22. Connect the coolant hose standoff to the transmission fluid cooler tube studbolt.
    GFD195272Courtesy of FORD MOTOR COMPANY

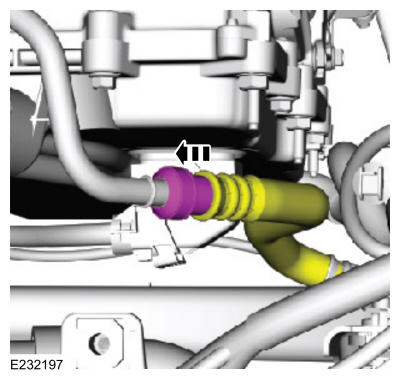

  23. Connect the transmission fluid cooler-to-transmission fluid auxiliary cooler tube assembly tube quick connect coupling.
    GFD195307Courtesy of FORD MOTOR COMPANY
  24. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F50/6F55 .
  25. Install the air cleaner. Refer to: Air Cleaner .
  26. Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
