Cooler Bypass Valve: Installation

WARNING: This page is about a different variant/trim than selected.

Install the cooler bypass valve, the nut and the bolt.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the tubes and tighten the fittings.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

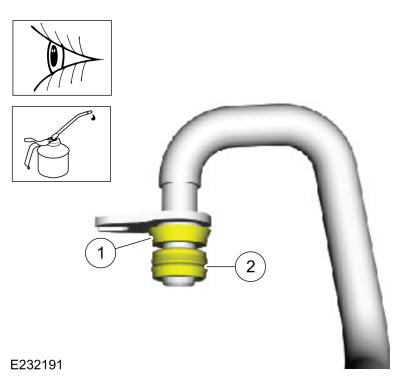

Inspect the transmission fluid cooler tube assembly backing rings and seals for damage and install new backing rings or seals if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
  Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)
Courtesy of FORD MOTOR COMPANY
Install the cooler bypass valve-to-transmission fluid cooler tube.
1. Tighten the fitting.
  Torque: 22 lb.ft (30 Nm)
2. Install the studbolt.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Connect the coolant hose standoff to the transmission fluid cooler tube studbolt.

Courtesy of FORD MOTOR COMPANY
Install the battery tray. Refer to: Battery Tray .
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
