Transmission Fluid Auxiliary Cooler Cleaning
WARNING: This page is about a different variant/trim than selected.
Cleaning
- Remove the LH front wheel and tire. Refer to: Wheel and Tire .

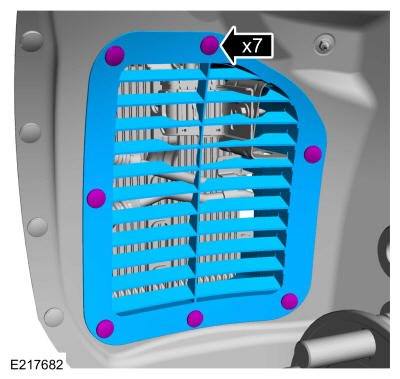

- Remove the retainers and the transmission fluid cooler inner fender cover.

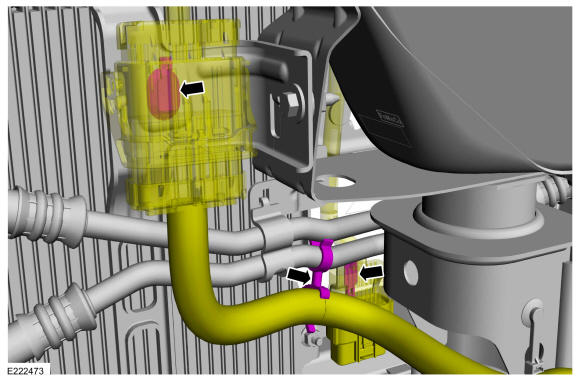

- Disconnect the electrical connector and wiring harness retainers.
- Using a garden hose with a nozzle, clean the transmission fluid auxiliary cooler.
- Connect the electrical connector and wiring harness retainers.
- Install the transmission fluid cooler inner fender cover and the retainers.
- Install the LH front wheel and tire. Refer to: Wheel and Tire .
