Removal And Installation: Radiator: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling module. Refer to: Cooling Module .

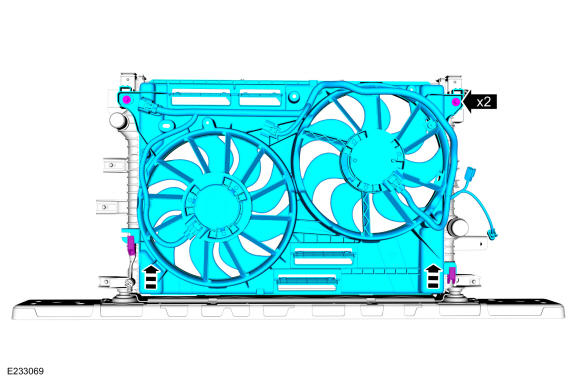

- Remove the bolts and the cooling fan assembly.
Torque: 53 lb.in (6 Nm)
-
NOTE: Fusion displayed MKZ similar.

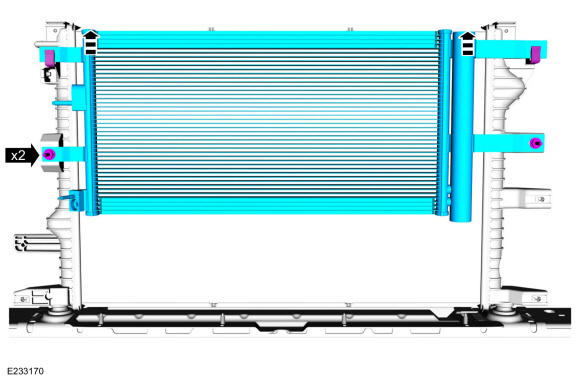

Remove the stud bolts and the A/C condenser.
Torque: 53 lb.in (6 Nm)

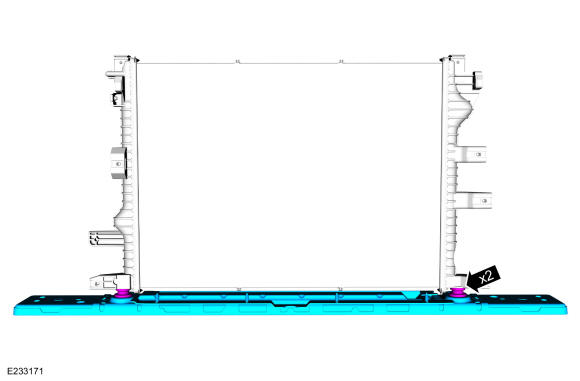

- Remove the lower radiator support.
-

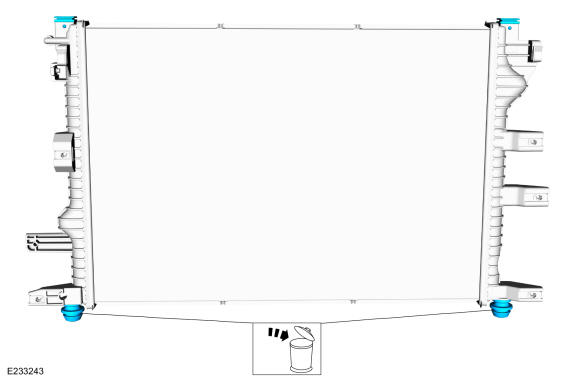

NOTE: Install new radiator lower isolators.
Remove the radiator upper and lower isolators.
